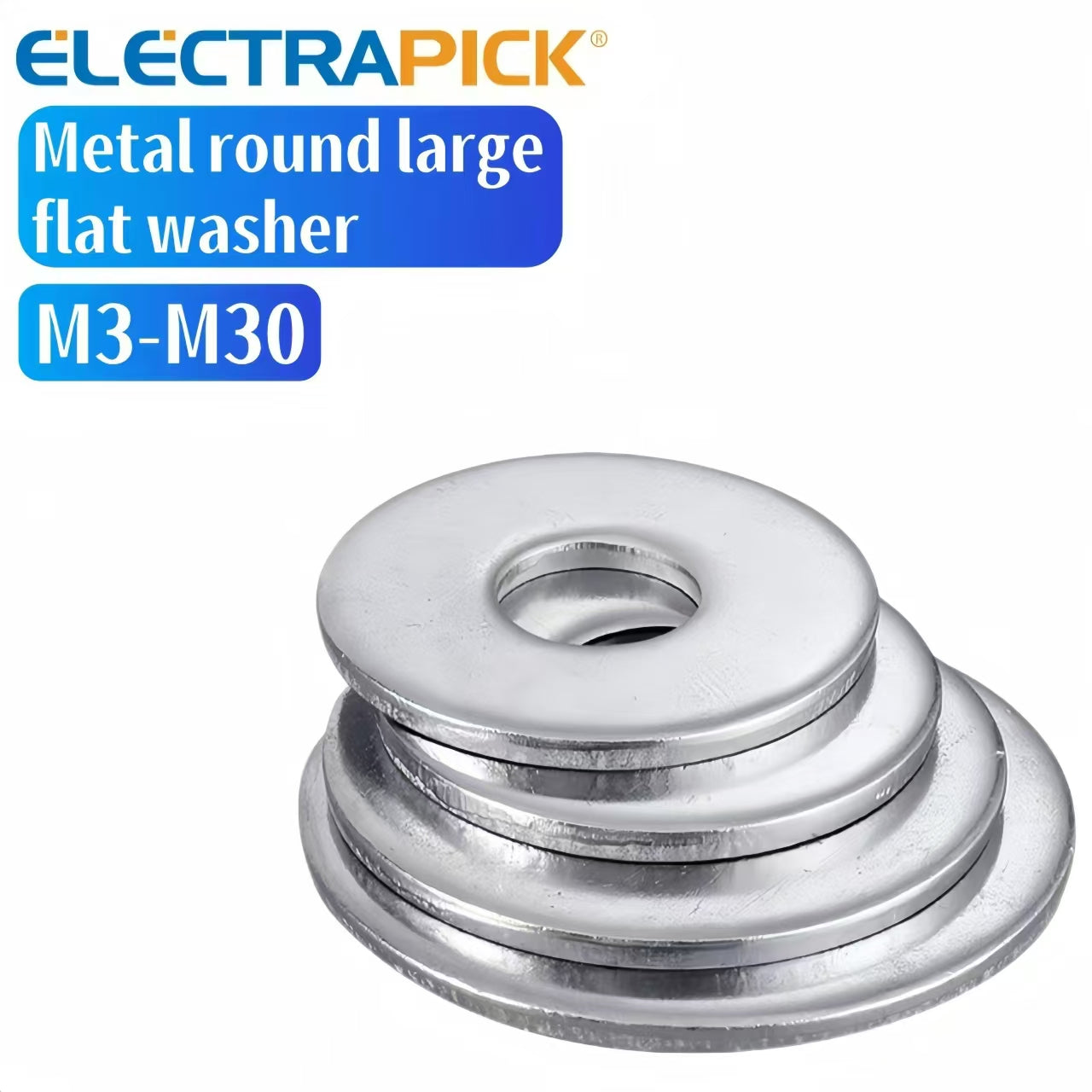

ELECTRAPICK 304 stainless steel large flat washer enlarged flat washer metal round large flat washer GB96-85
ELECTRAPICK 304 stainless steel large flat washer enlarged flat washer metal round large flat washer GB96-85
常规价格
$0.10 USD
常规价格
$0.00 USD
促销价
$0.10 USD
单价
单价
无法加载取货服务可用情况
Dimensions chart
Specification sheet
| Specific | ation | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | 24 | 30 | 36 |
| d | Minimum value=nominal | 3.2 | 4.3 | 5.3 | 6.4 | 8.4 | 10.5 | 13 | 15 | 17 | 22 | 26 | 33 | 39 |
| Maximum value | 3.38 | 4.48 | 5.48 | 6.62 | 8.62 | 10.77 | 13.27 | 15.27 | 17.27 | 22.52 | 26.84 | 34 | 40 | |
| dc | Maximum value=nominal | 9 | 12 | 15 | 18 | 24 | 30 | 37 | 44 | 50 | 60 | 72 | 92 | 110 |
| Minimum value | 8.64 | 11.57 | 14.57 | 17.57 | 23.48 | 29.48 | 36.38 | 43.38 | 49.38 | 58.1 | 70.1 | 89.8 | 107.8 | |
|
h |
Nominal | 0.8 | 1 | 1.2 | 1.6 | 2 | 2.5 | 3 | 3 | 3 | 4 | 5 | 6 | 8 |
| Maximum value | 0.9 | 1.1 | 1.4 | 1.8 | 2.2 | 2.7 | 3.3 |
3.3 |
3.3 | 4.6 | 6 | 7 | 9.2 | |
| Minimum | 0.7 | 0.9 | 1 | 1.4 | 1.8 | 2.3 | 2.7 | 2.7 | 2.7 | 3.4 | 4 | 5 | 6.8 |
