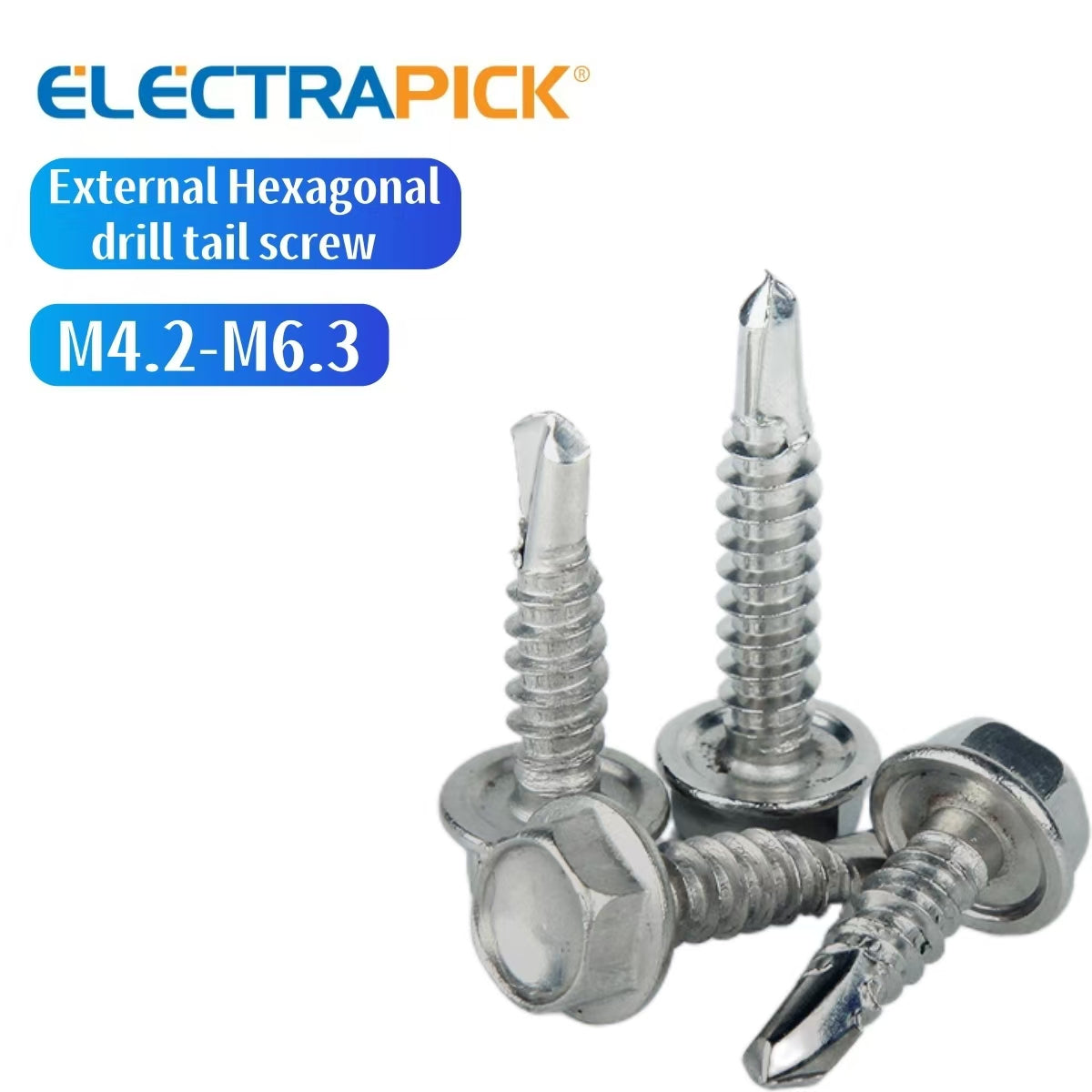

ELECTRAPICK 410 Stainless steel hexagonal self-drilling dovetail screws
ELECTRAPICK 410 Stainless steel hexagonal self-drilling dovetail screws
常规价格
$1.43 USD
常规价格
$0.00 USD
促销价
$1.43 USD
单价
单价
无法加载取货服务可用情况
Dimensions chart
Specification sheet
| Thread specification | ST2.9 | ST3.5 | (ST3.9) | ST4.2 | ST4.8 | (ST5.5) | ST6.3 | |
| P | Thread pitch | 1.1 | 1.3 | 1.3 | 1.4 | 1.6 | 1.8 | 1.8 |
| a | MAX | 1.1 | 1.3 | 1.3 | 1.4 | 1.6 | 1.8 | 1.8 |
| C | MIN | 0.4 | 0.6 | 0.6 | 0.8 | 0.9 | 1 | 1 |
| dc | MAX | 6.3 | 8.3 | 8.3 | 8.8 | 10.5 | 11 | 13.5 |
| MIN | 5.8 | 7.6 | 7.6 | 8.1 | 9.8 | 10 | 12.2 | |
| e | MIN | 4.28 | 5.96 | 5.96 | 7.59 | 8.71 | 8.71 | 10.95 |
| k | MAX | 2.8 | 3.4 | 3.4 | 4.1 | 4.3 | 5.4 | 5.9 |
| MIN | 2.5 | 3 | 3 | 3.6 | 3.8 | 4.8 | 5.3 | |
| kw | MIN | 1.3 | 1.5 | 1.5 | 1.8 | 2.2 | 2.7 | 3.1 |
| r | MAX | 0.4 | 0.5 | 0.5 | 0.6 | 0.7 | 0.8 | 0.9 |
| s | MAX | 4 | 5.5 | 5.5 | 7 | 8 | 8 | 10 |
| MIN | 3.82 | 5.32 | 5.32 | 6.78 | 7.78 | 7.78 | 9.78 | |
| dp | 2.3 | 2.8 | 3.1 | 3.6 | 4.1 | 4.8 | 5.8 | |
Basic Information
