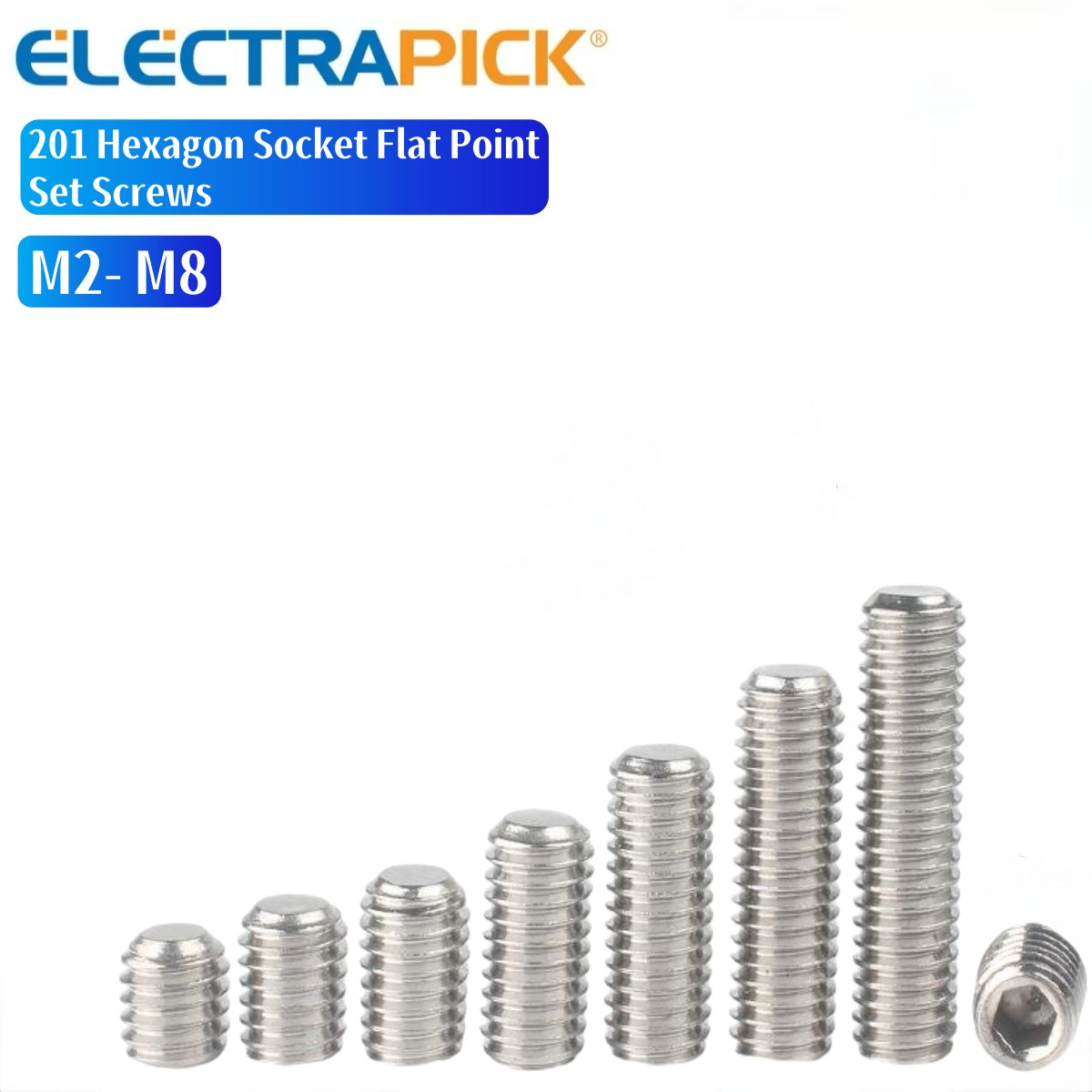

ELECTRAPICK 201 Hexagon Socket Flat Point Set Screws

ELECTRAPICK 201 Hexagon Socket Flat Point Set Screws

$0.99 USD
$0.99 USD
促销 售罄
Thread Nominal (M)
Nominal length(mm)

Dimensions chart


Specification sheet

unit:nn
Thread specification Thread pitch                       S t
d P Nominal nax nin
M1.4 0.3 0.7 0.724 0.711 0.6
M1.6 0.35 0.7 0.724 0.711 0.7
M1.8 0.35 0.7 0.724 0.711 0.8
M2 0.4 0.9 0.902 0.889 0.8
M2.5 0.45 1.3 1.295 1.27 1.2
M3 0.5 1.5 1.545 1.52 1.2
M4 0.7 2 2.045 2.02 1.5
M5 0.8 2.5 2.56 2.52 2
M6 1 3 3.08 3.02 2
M8 1.25 4 4.095 4.02 3
M10 1.5 5 5.095 5.02 4
M12 1.75 6 6.095 6.02 4.8
M14 2 6 6.095 6.02 5.6
M16 2 8 8.115 8.025 6.4
][18 2.5 10 10.12 10.03 7.2
M20 2.5 10 10.12 10.03 8

Basic Information
