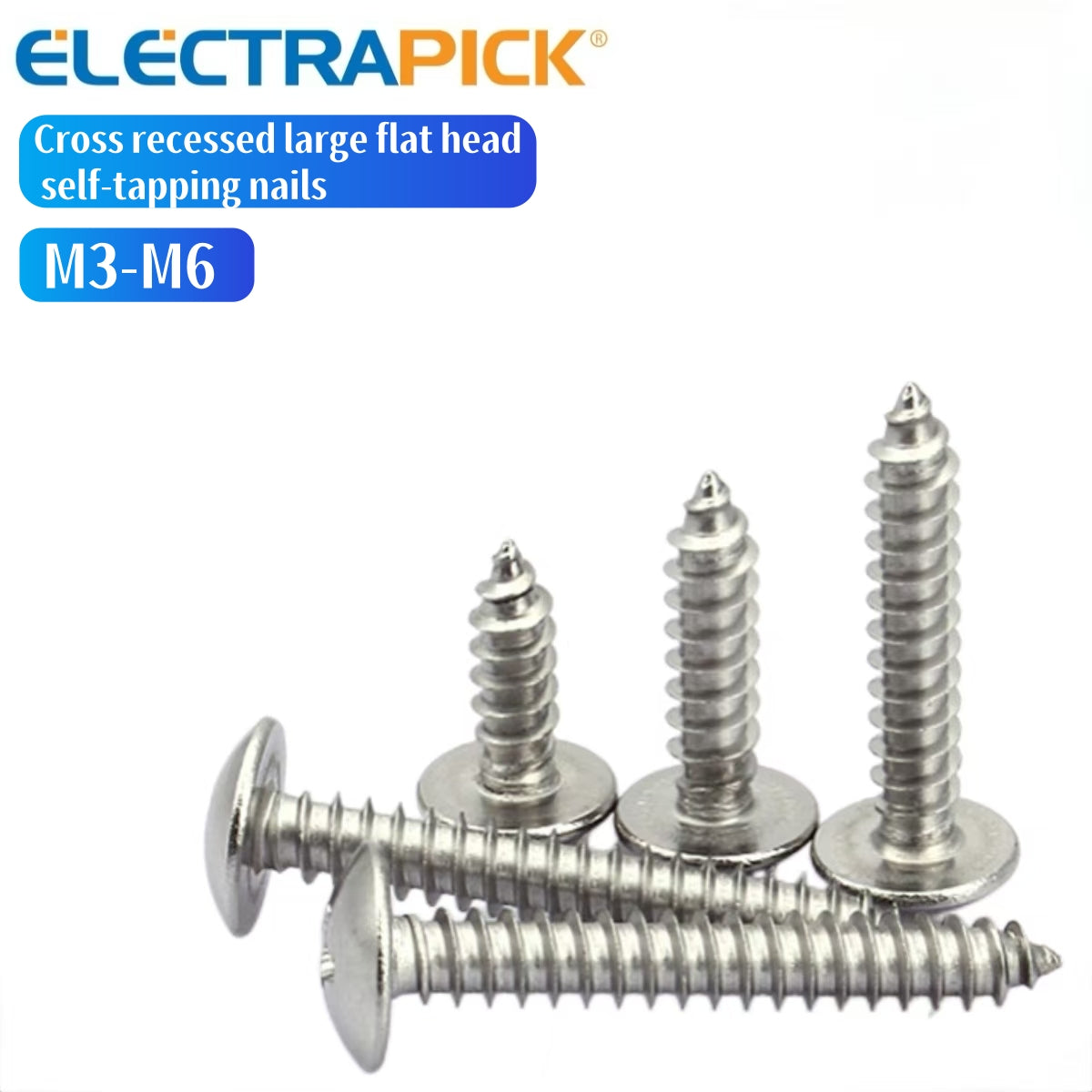

Electrapick 201 Stainless steel cross round head self tapping screws with large flat head
Electrapick 201 Stainless steel cross round head self tapping screws with large flat head
常规价格
$1.04 USD
常规价格
$0.00 USD
促销价
$1.04 USD
单价
/
单价
Dimensions chart
Specification sheet
Thread size | 3 | 3.5 | 4 | 5 | 6 | |
dk | Maximum value=nominal | 6.9 | 8.1 | 9.4 | 11.8 | 14 |
Minimum | 6.4 | 7.6 | 8.9 | 11.2 | 13.3 | |
k | Nominal | 1.9 | 2.2 | 2.5 | 3.1 | 3.7 |
Maximum | 2.05 | 2.35 | 2.65 | 3.25 | 3.9 | |
Minimum | 1.75 | 2.05 | 2.35 | 2.95 | 3.5 | |
R | 4.6 | 5.4 | 6.1 | 7.7 | 9.1 | |
r | Maximum | 0.4 | 0.4 | 0.5 | 0.6 | 0.7 |
Slot number | 2 | 2 | 2 | 2 | 3 | |
m | Reference value | 3.9 | 4.0 | 4.3 | 5.0 | 6.3 |
depth | Maximum | 1.72 | 1.83 | 2.13 | 2.83 | 2.86 |
depth | Minimum | 1.34 | 1.3 | 1.6 | 2.29 | 2.31 |
