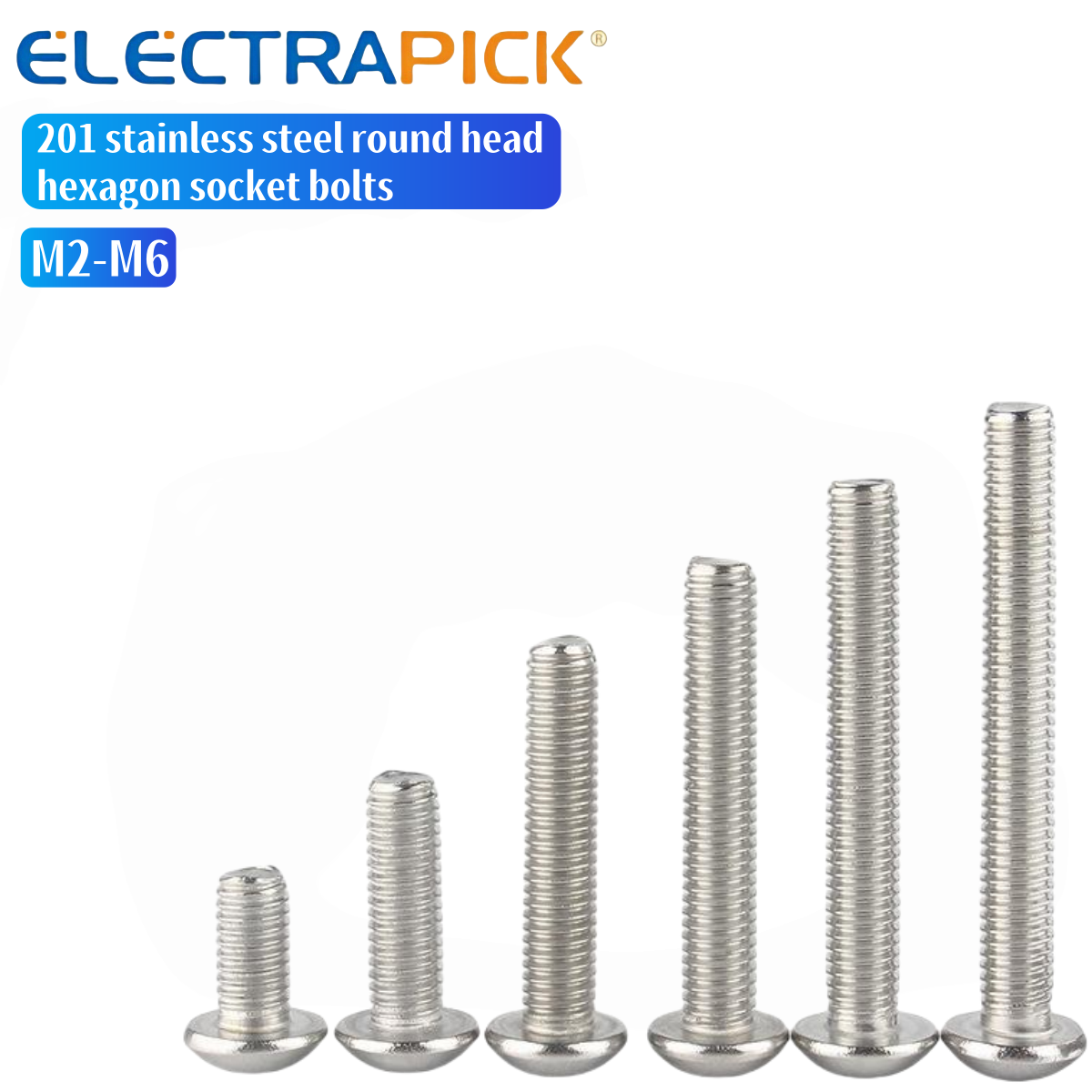

ELECTRAPICK 201 stainless steel round head hexagon socket bolts M2-M6

ELECTRAPICK 201 stainless steel round head hexagon socket bolts M2-M6

$0.99 USD
$0.99 USD
促销 售罄
Thread Nominal (M)
Nominal length (mm)

Dimensions chart


Specification sheet

Thread  specification d M3 M4 M5 M6 M8 M10 M12 (M14) M16 (M18) M20
 P Thread pitch 0.5 0.7 0.8 1 1.25 1.5 1.75 2 2 2.5 2.5
a tol.(+2) 90° 90° 90° 90* 90* 90° 90" 90° 90° 90° 90°
b LS125 12 14 16 18 22 26 30 34 38 42 46
125<LS 200    / / / 24 28 32 36 40 44 48 52
L>200    /    / / / / 45 49 53 57 61 65
dk Maximum value = nominal 6 8 10 12 16 20 24 27 30 33 36
Minimum 5.7 7.64 9.64 11.57 15.57 19.48 23.48 26.48 29.48 32.38 35.38
ds Maximum value = nominal 3 4 5 6 8 10 12 14 16 18 20
Minimum 2.86 3.82 4.82 5.82 7.78 9.78 11.73 13.73 15.73 17.73 19.67
e Minimum 2.3 2.87 3.44 4.58 5.72 6.86 9.15 11.43 11.43 13.72 13.72
k Maximum 1.7 2.3 2.8 3.3 4.4 5.5 6.5 7 7.5 8 8.5
s Nominal 2 2.5 3 4 5 6 8 10 10 12 12
Minimum 2.02 2.52 3.02 4.02 5.02 6.02 8.025 10.025 10.025 12.032 12.032
Maximum 2.1 2.6 3.1 4.12 5.14 6.14 8.175 10.175 10.175 12.212 12.212
t Maximum value = nominal 1.2 1.8 2.3 2.5 3.5 4.4 4.6 4.8 5.3 5.5 5.9
Minimum 0.95 1.55 2.05 2.25 3.2 4.1 4.3 4.5 5 5.2 5.6
