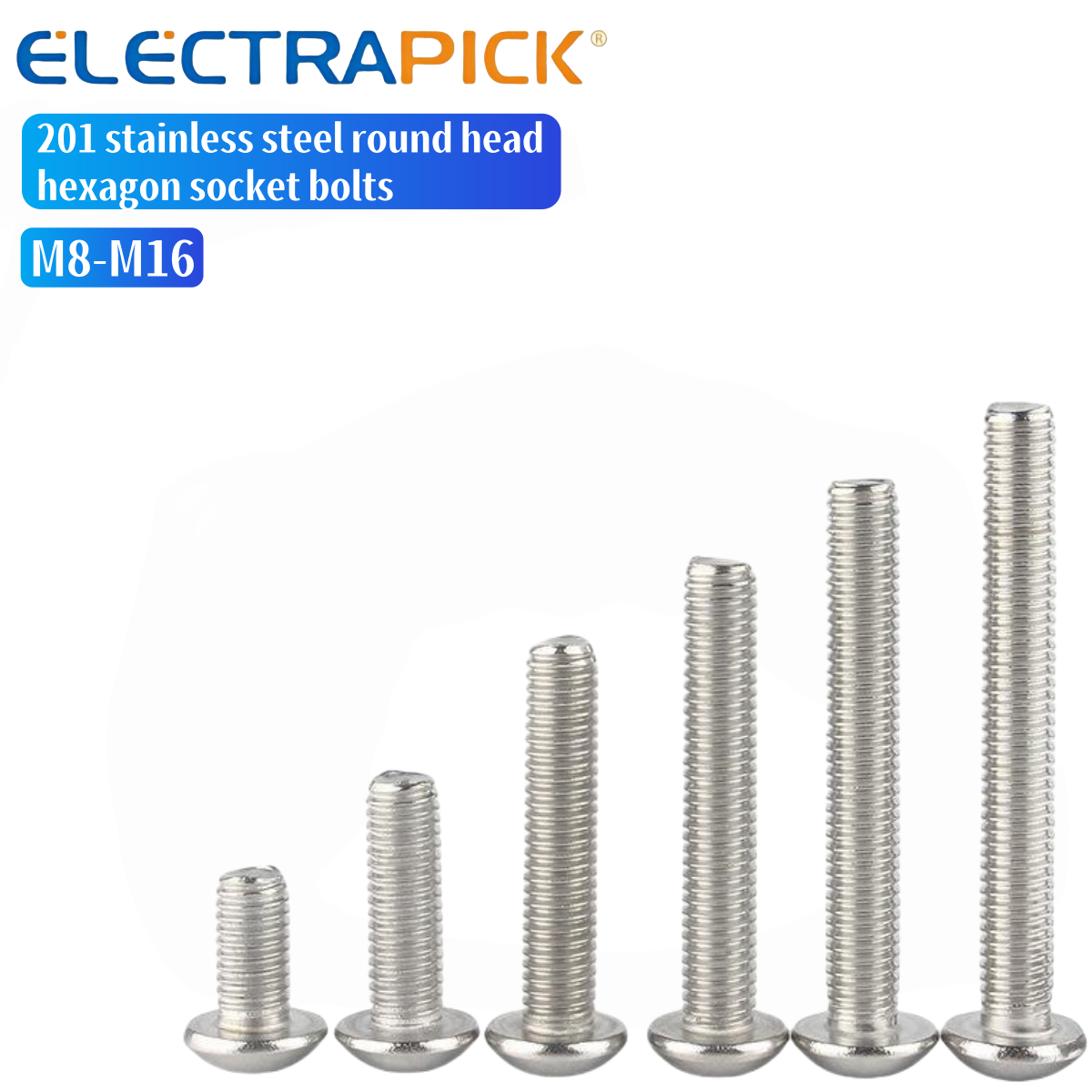

ELECTRAPICK 201 stainless steel round head hexagon socket bolts M8-M16
ELECTRAPICK 201 stainless steel round head hexagon socket bolts M8-M16
常规价格
$0.99 USD
常规价格
促销价
$0.99 USD
单价
/
单价
Dimensions chart
Specification sheet
Thread specification d | M3 | M4 | M5 | M6 | M8 | M10 | M12 | (M14) | M16 | (M18) | M20 | |
P | Thread pitch | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 |
a | tol.(+2) | 90° | 90° | 90° | 90* | 90* | 90° | 90" | 90° | 90° | 90° | 90° |
b | LS125 | 12 | 14 | 16 | 18 | 22 | 26 | 30 | 34 | 38 | 42 | 46 |
125<LS 200 | / | / | / | 24 | 28 | 32 | 36 | 40 | 44 | 48 | 52 | |
L>200 | / | / | / | / | / | 45 | 49 | 53 | 57 | 61 | 65 | |
dk | Maximum value = nominal | 6 | 8 | 10 | 12 | 16 | 20 | 24 | 27 | 30 | 33 | 36 |
Minimum | 5.7 | 7.64 | 9.64 | 11.57 | 15.57 | 19.48 | 23.48 | 26.48 | 29.48 | 32.38 | 35.38 | |
ds | Maximum value = nominal | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
Minimum | 2.86 | 3.82 | 4.82 | 5.82 | 7.78 | 9.78 | 11.73 | 13.73 | 15.73 | 17.73 | 19.67 | |
e | Minimum | 2.3 | 2.87 | 3.44 | 4.58 | 5.72 | 6.86 | 9.15 | 11.43 | 11.43 | 13.72 | 13.72 |
k | Maximum | 1.7 | 2.3 | 2.8 | 3.3 | 4.4 | 5.5 | 6.5 | 7 | 7.5 | 8 | 8.5 |
s | Nominal | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 | 10 | 12 | 12 |
Minimum | 2.02 | 2.52 | 3.02 | 4.02 | 5.02 | 6.02 | 8.025 | 10.025 | 10.025 | 12.032 | 12.032 | |
Maximum | 2.1 | 2.6 | 3.1 | 4.12 | 5.14 | 6.14 | 8.175 | 10.175 | 10.175 | 12.212 | 12.212 | |
t | Maximum value = nominal | 1.2 | 1.8 | 2.3 | 2.5 | 3.5 | 4.4 | 4.6 | 4.8 | 5.3 | 5.5 | 5.9 |
Minimum | 0.95 | 1.55 | 2.05 | 2.25 | 3.2 | 4.1 | 4.3 | 4.5 | 5 | 5.2 | 5.6 |
