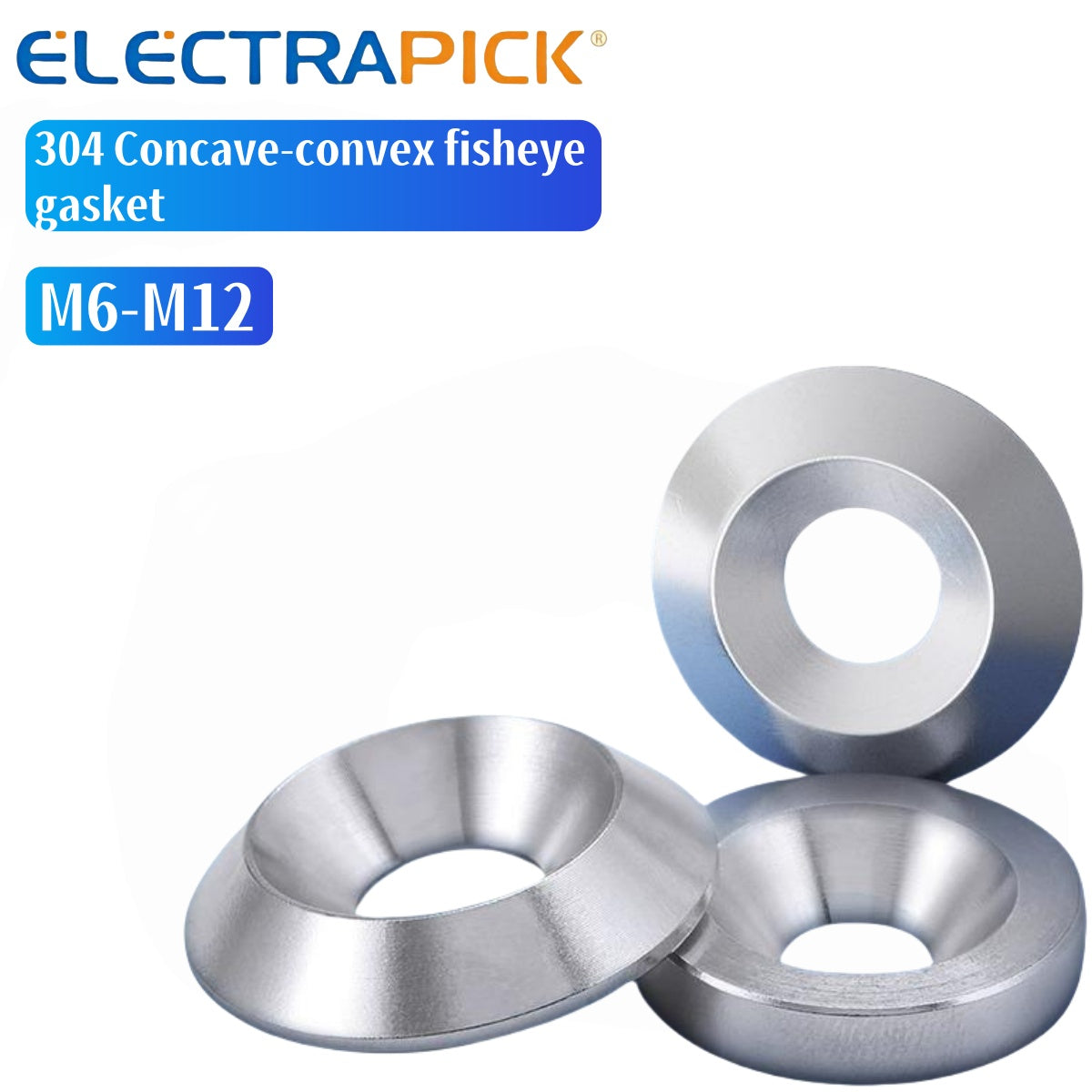

ELECTRAPICK 304 Concave-convex fisheye gasket
ELECTRAPICK 304 Concave-convex fisheye gasket
常规价格
$0.55 USD
常规价格
促销价
$0.55 USD
单价
单价
无法加载取货服务可用情况
Dimensions chart
Specification sheet
| Specification | 3 | 4 | 5 | 6 | |
| d | min | 3.2 | 4.3 | 5.3 | 6.4 |
| max | 3.5 | 4.6 | 5.6 | 7.76 | |
| dc | Nominal | 10 | 13 | 15 | 18 |
| min | 9.55 | 12.45 | 14.45 | 17.45 | |
| max | 10.45 | 13.55 | 15.55 | 18.55 | |
| H | Nominal | 2 | 3 | 3 | 3.5 |
| min | 1.7 | 2.7 | 2.7 | 3.12 | |
| max | 2.3 | 3.3 | 3.3 | 3.88 | |
| Nominal | 1.5 | 2.5 | 2.5 | 3 | |
| min | 1.2 | 2.2 | 2.2 | 2.7 | |
| max | 1.8 | 2.8 | 2.8 | 3.3 | |
| r | 0.5 | 0.8 | 0.8 | 1 | |
| R | 1.5 | 2 | 2 | 2.5 | |
| s | 0.4 | 0.4 | 0.5 | 0.5 | |
