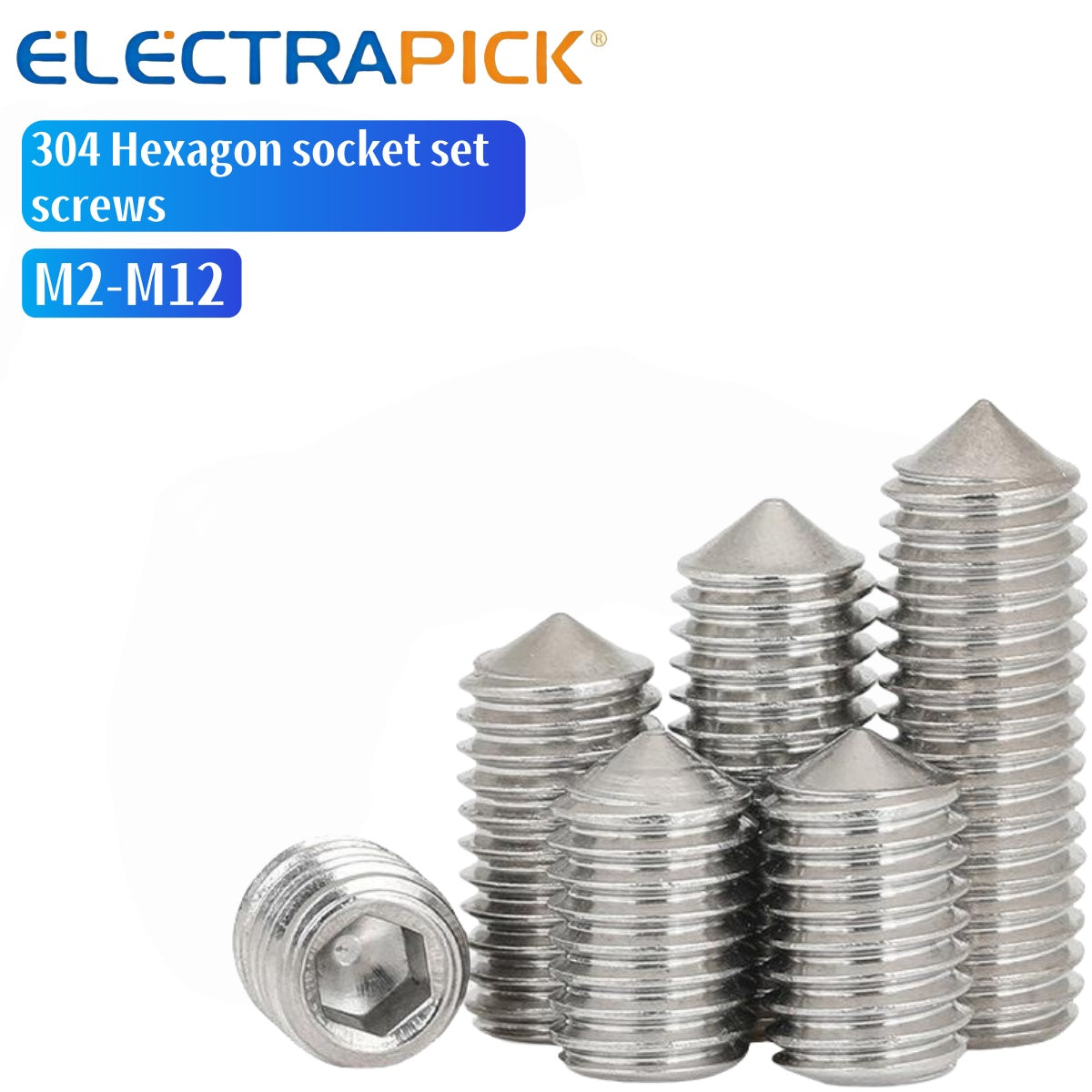

ELECTRAPICK 304 Hexagon socket set screws

ELECTRAPICK 304 Hexagon socket set screws

$0.99 USD
$0.99 USD
促销 售罄
Thread Nominal (M) and Pitch and Hexagon Socket Across Flats
Nominal length(mm)

Dimensions chart


Specification sheet

unit mm
Nominal diameter d Thread pitch p dt                            s t
max Nominal max min min
M1.6 0.35 0.4 0.7 0.724 0.710 0.7
M2 0.4 0.5 0.9 0.913 0.887 0.8
M2.5 0.45 0.65 1.3 1.3 1.275 1.2
M3 0.5 0.75 1.5 1.58 1.52 1.2
M4 0.7 1 2 2.08 2.02 1.5
M5 0.8 1.25 2.5 2.58 2.52 2
M6 1 1.5 3 3.08 3.02 2
M8 1.25 2 4 4.095 4.02 3
M10 1.5 2.5 5 5.14 5.02 4
M12 1.75 3 6 6.14 6.02 4.8
M16 2 4 8 8.175 8.025 6.4
M20 2.5 5 10 10.175 10.025 8


Basic Information
