ELECTRAPICK

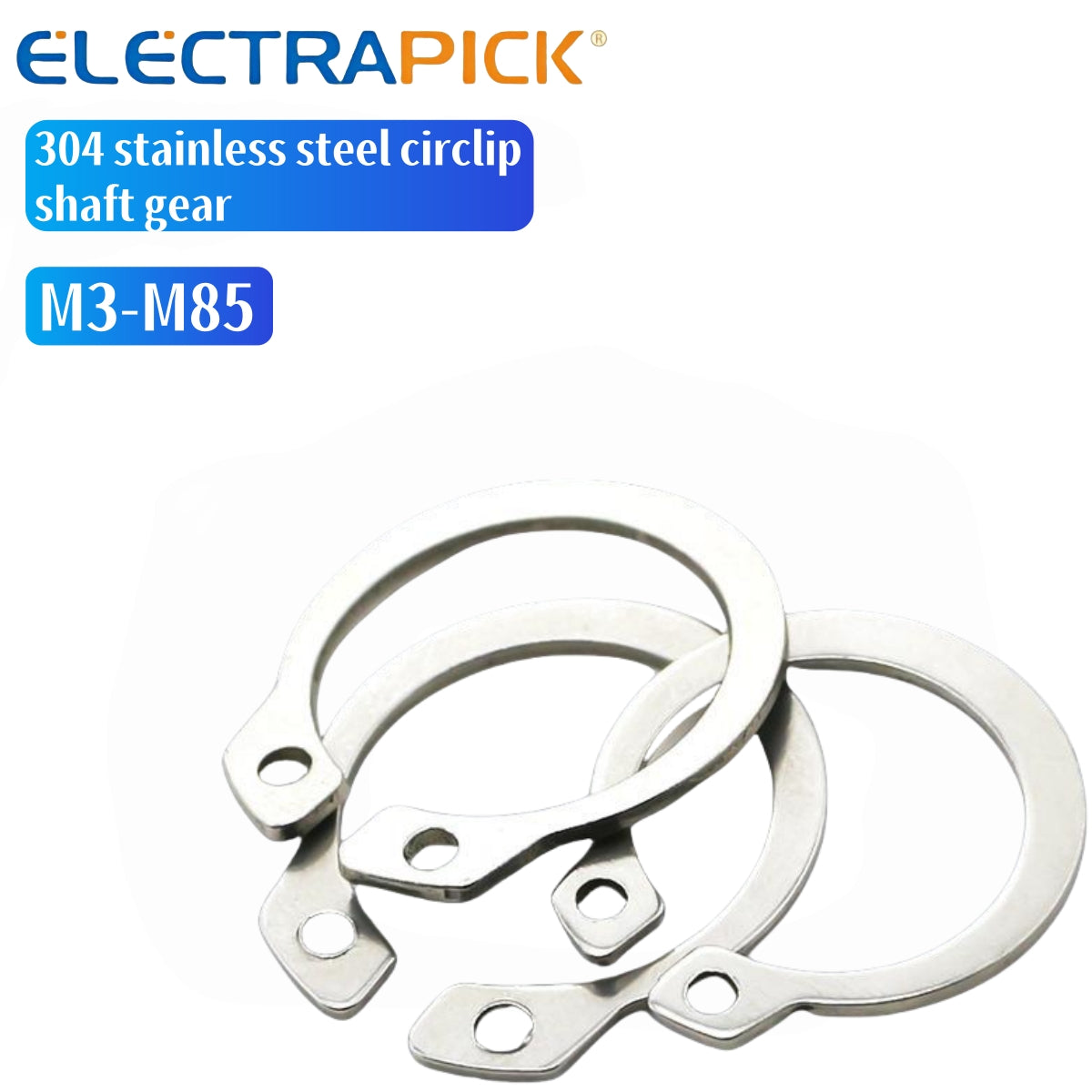

ELECTRAPICK 304 stainless steel circlip shaft gear

ELECTRAPICK 304 stainless steel circlip shaft gear

常规价格 $6.00 USD
常规价格 促销价 $6.00 USD
促销 售罄
Inner diameter of retaining ring (mm)

Dimensions chart


Specification sheet

unit: mm
d h
Nominal diameter Basic size Limit
deviation
Basic size Limit deviation d1
3 2.7 +0.04 -0.15 0.4 +0.03 -0.06 1
4 3.7
5 4.7 0.6 +0.04 -0.07
6 5.6 1.2
7 6.5 +0.06 -0.18
8 7.4 0.8 +0.04 -0.10
9 8.4
10 9.3 +0.10 -0.36 1 +0.05 -0.13 1.5
11 10.2
12 11
13 11.9 1.7
14 12.9
15 13.8
16 14.7
17 15.7
18 16.5
19 17.5 2
20 18.5 +0.13 -0.42
21 19.5
22 20.5 1.2
24 22.2
25 23.2
26 24.2
28 25.9 1.5
29 26.9
30 27.9
32 29.6 2.5
34 31.5
35 32.2
36 33.2 1.75
38 35.2
40 36.5
42 38.5 3
45 41.5
48 44.5
50 45.8 2
52 47.8
55 50.8 +0.06 -0.18
56 51.8
58 53.8
60 55.8
62 57.8
63 58.8
65 60.8 0.46- 1.10 2.5
68 63.5
70 65.5
72 67.5
75 70.5
78 73.5
80 74.5
82 76.5
85 79.5
