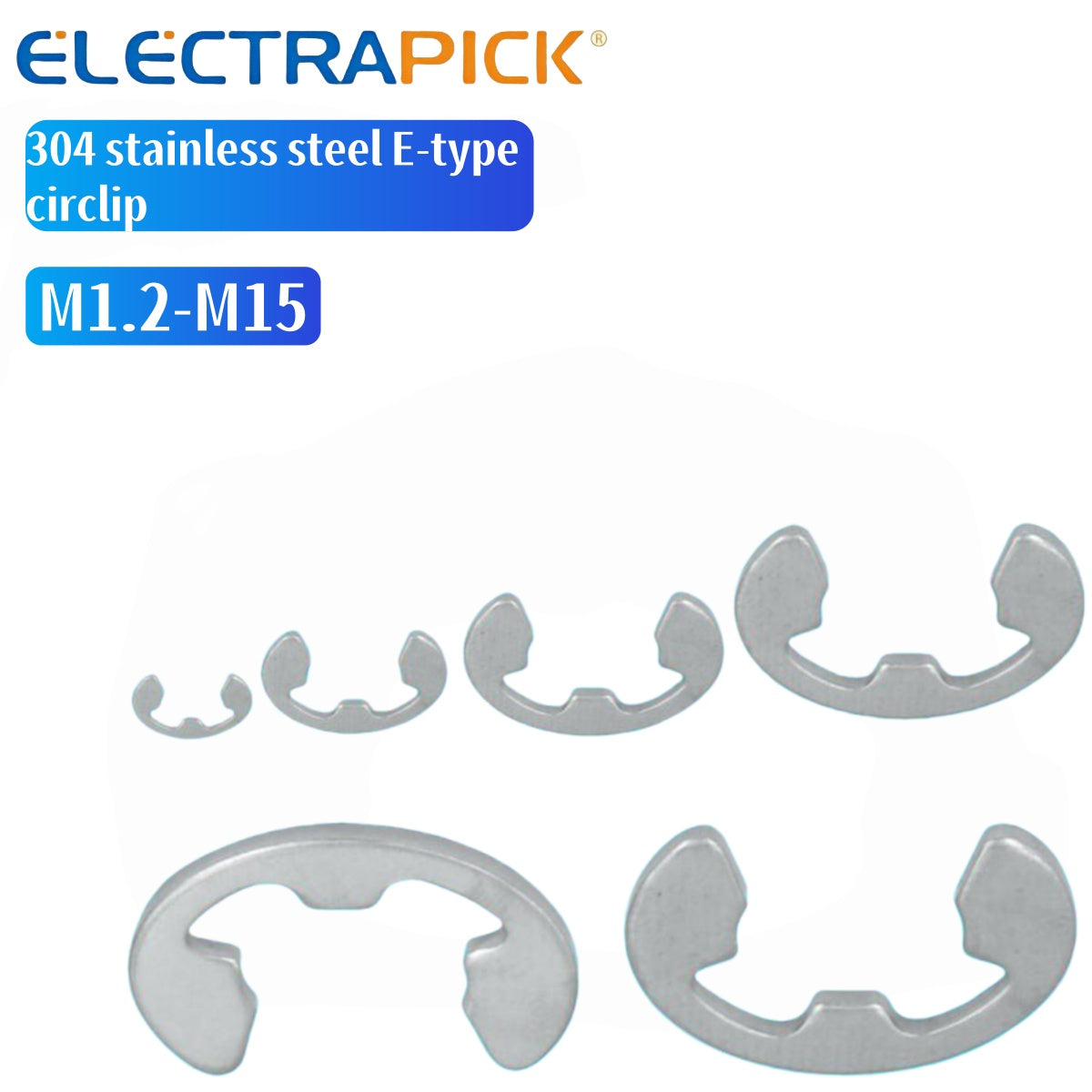

ELECTRAPICK 304 stainless steel E-type circlip
ELECTRAPICK 304 stainless steel E-type circlip
常规价格
$0.03 USD
常规价格
促销价
$0.03 USD
单价
单价
无法加载取货服务可用情况
Dimensions chart
Specification sheet
| unit: mm | ||||||
| Nominal diameter d | n | h | dc | |||
| Basic size | Limit deviation | Basic size | Limit deviation | Limit deviation | Basic size | |
| 1.2 | 0.9 | ±0.08 | 0.03 | 3 | ||
| 1.5 | 0-0.14 | 1.2 1.7 2.2 2.5 |
±0.125 | +0.03 -0.06 | 0.4 | 4 |
| 2 | 5 | |||||
| 2.5 | 6 | |||||
| 3 | +0.04 -0.07 | 0.4 | 7 | |||
| 3.5 | 0-0.18 | 3 | 8 | |||
| 4 | 3.5 4.5 |
±0.15 | +0.04 -0.10 | 0.5 | 9 | |
| 5 | 10 | |||||
| 6 | 5.5 | +0.05 -0.13 | 1 | 12 | ||
| 8 | 0 | 7.5 | ±0.18 | 1618 | ||
| 9 | -0.22 | 8 | ||||
| 12 | 0-0.27 | 10.5 | 1.2 | 24 | ||
| 15 | 13 | ±0.215 | +0.06 -0.15 | 1.5 | 30 | |
