ELECTRAPICK

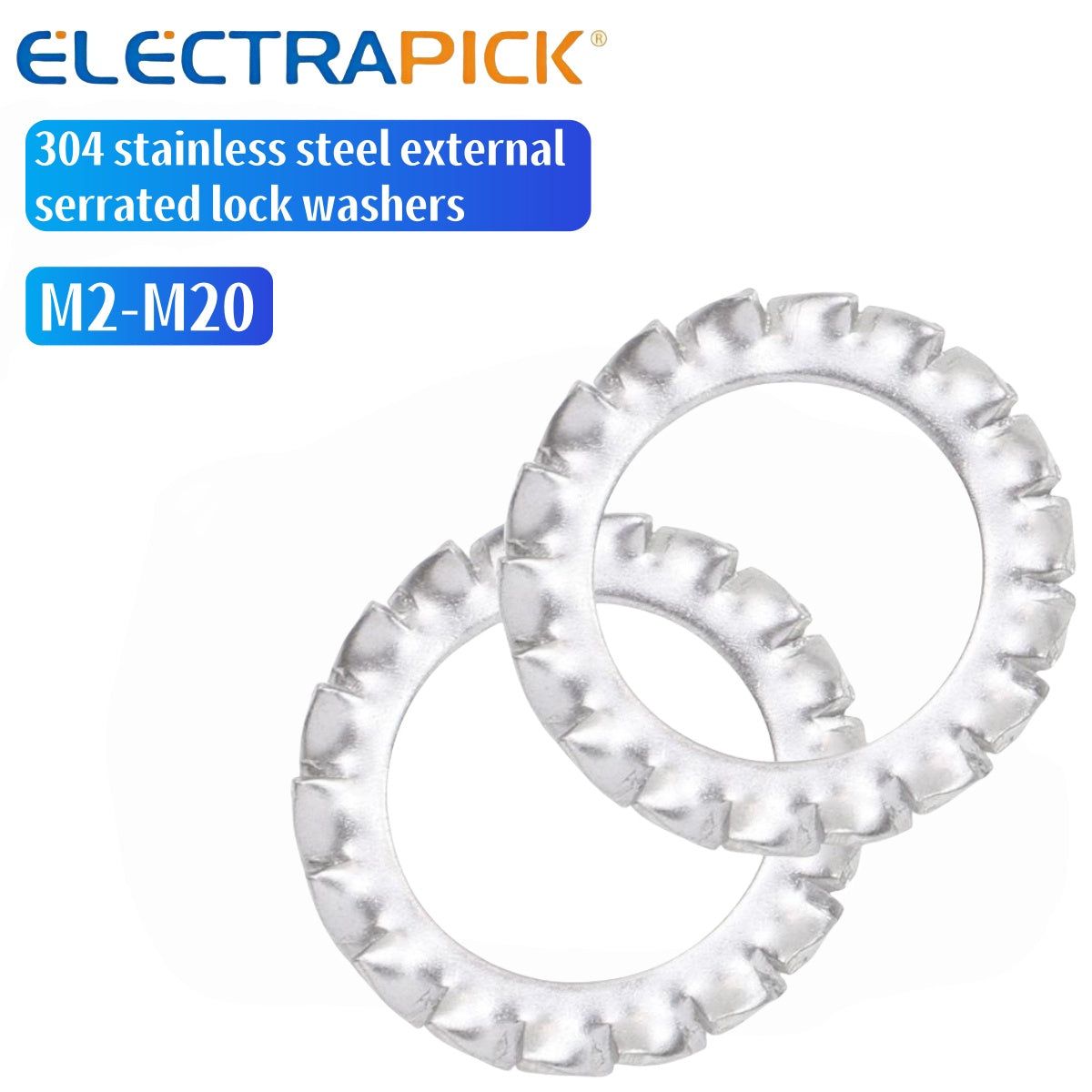

ELECTRAPICK 304 stainless steel external serrated lock washers

ELECTRAPICK 304 stainless steel external serrated lock washers

$0.15 USD
$0.15 USD
促销 售罄
Washer inner diameter

Dimensions chart


Specification sheet

unit:mm
Specification d dc Thickness h
min max min max
2 2.2 2.45 4.2 4.5 0.3
2.5 2.7 2.95 5.2 5.5
3 3.2 3.5 5.7 6 0.4
4 4.3 4.6 7.64 8 0.5
5 5.3 5.6 9.64 10 0.6
6 6.4 6.76 10.57 11
8 8.4 8.76 14.57 15 0.8
10 10.5 10.93 17.57 18 1
12 12.5 12.93 19.98 20.5
14 14.5 14.93 23.48 24 1.2
16 16.5 16.93 25.48 26
18 19 19.52 29.48 30 1.5
20 21 21.52 32.38 33


Basic Information
