ELECTRAPICK

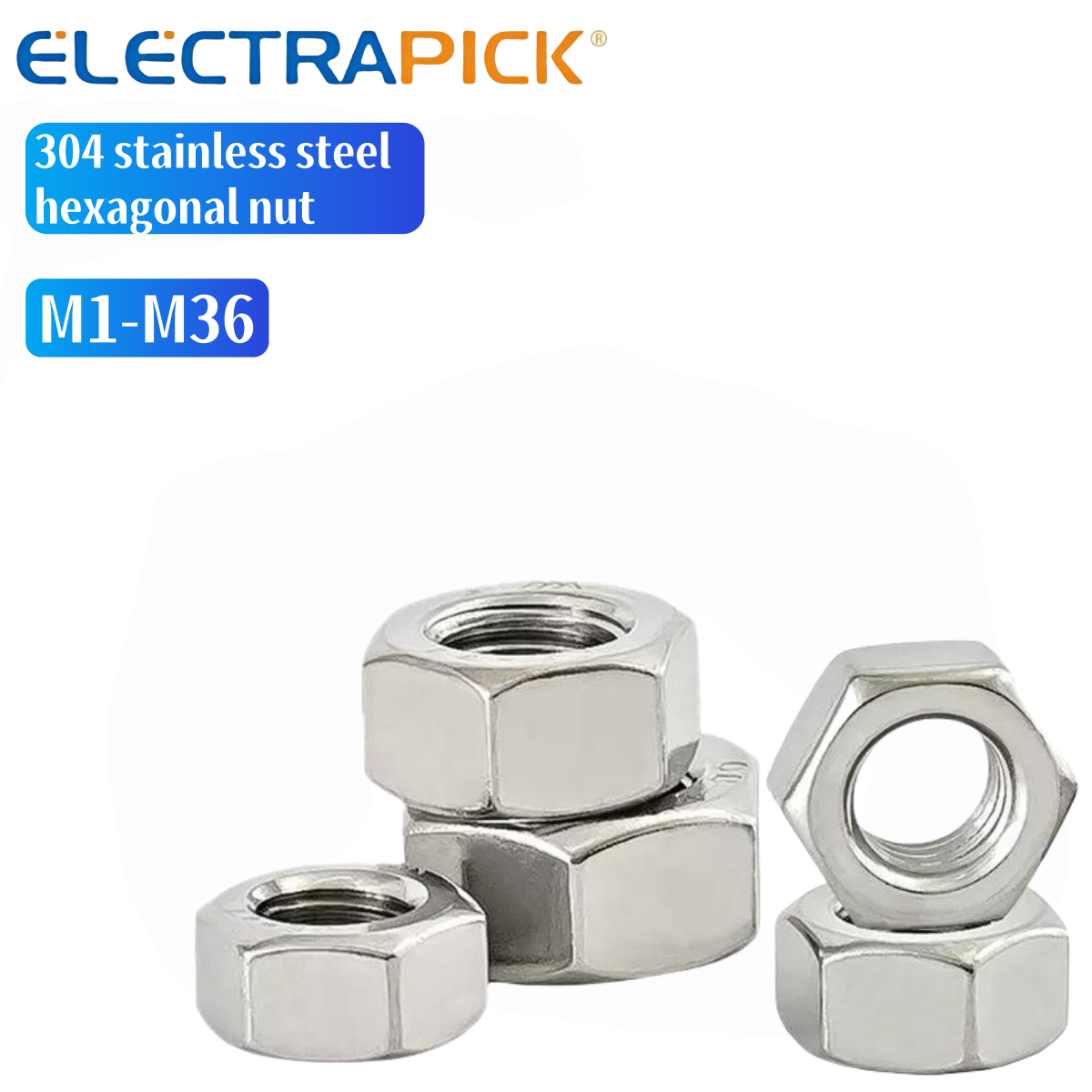

ELECTRAPICK 304 stainless steel hexagonal nut

ELECTRAPICK 304 stainless steel hexagonal nut

$0.10 USD
$0.10 USD
促销 售罄
Thread Nominal (M)

Dimensions chart


Specification sheet

Nominal diameter d Thread pitch p                   m                    s
max min max min
M1 0.25 0.65 0.55 2.5 2.4
M1.2 0.25 0.85 0.75 2.8 2.7
M1.4 0.3 1.05 0.95 3.1 3.0
M1.6 0.35 1.2 1.1 3.3 3.2
M2 0.4 1.7 1.6 4 3.8
M2.5 0.45 2 1.9 5 4.8
M2.6 0.45 2.25 2.15 5 4.8
M3 0.5 2.4 2.55 5.5 5.32
M4 0.7 3.2 2.9 7 6.78
M5 0.8 4 3.7 8 7.78
M6 1 5.1 5.0 10 9.78
M8 1/1.25 6.6 6.5 13 12.73
M10 1/1.25/1.5 8.2 8.1 16.1 15.9
M12 1.25/1.5/1.75 10.6 10.5 18.1 17.9
M14 1.5/2 12.3 12.2 20.8 20.7
M16 1.5/2 14.4 14.2 24 23.67
M18 1.5/2/2.5 15.5 15.3 27 26.16
M20 1.5/2/2.5 17.1 16.9 30 29.16
M22 1.5/2/2.5 18.3 18.1 33.3 33.1
M24 2/3 20.8 20.6 36 35
M27 2/3 23.5 23.1 41 40
M30 2/3.5 24.9 24.5 46 45
M36 4 29 27.4 55 53.8


Basic Information
