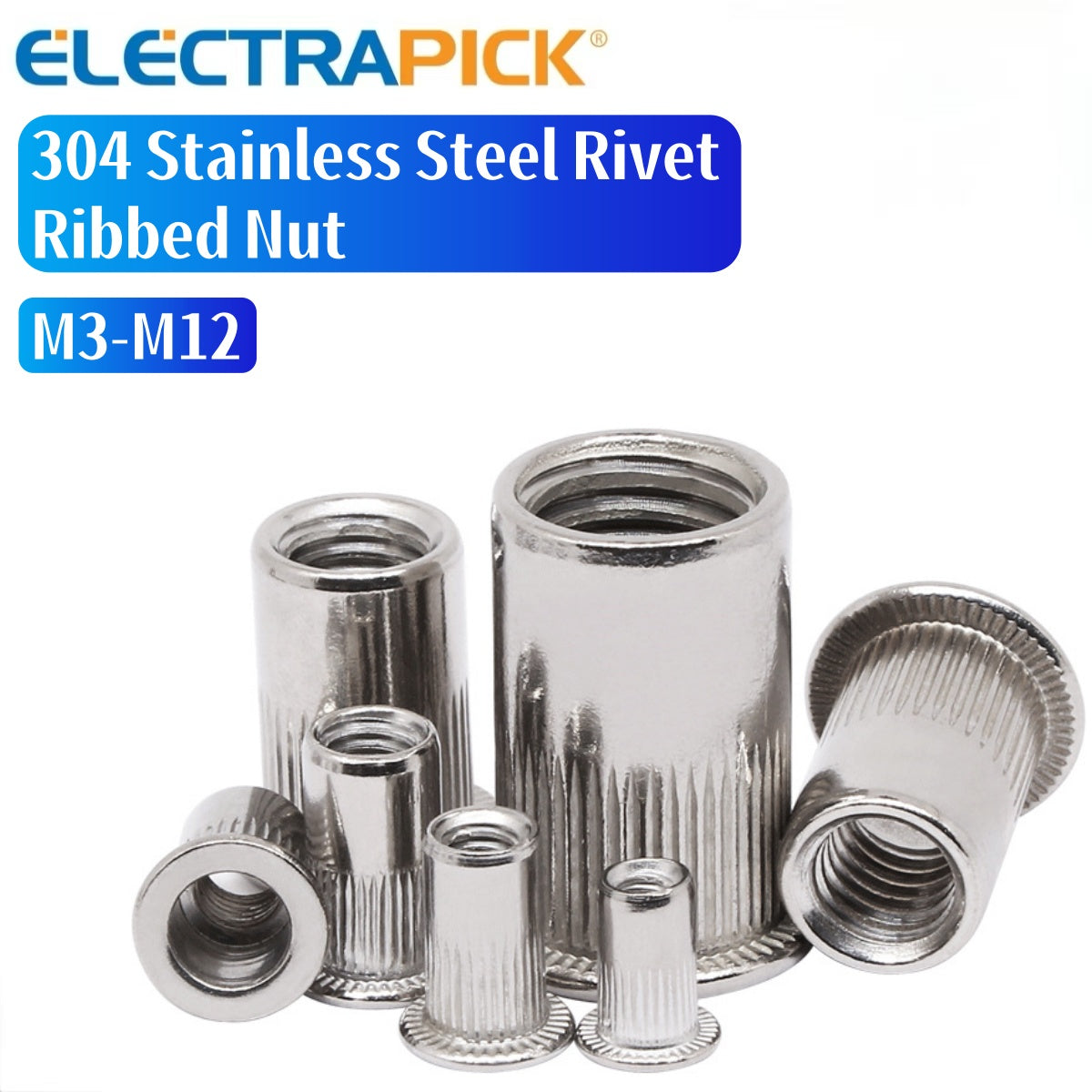

ELECTRAPICK 304 Stainless Steel Rivet Ribbed Nut
ELECTRAPICK 304 Stainless Steel Rivet Ribbed Nut
常规价格
$1.99 USD
常规价格
促销价
$1.99 USD
单价
单价
无法加载取货服务可用情况
Dimensions chart
Specification sheet
| Specification | Inner Diameter D (mm) | Outer Diameter d (mm) | Head Inner Diameter do (mm) | Head Outer Diameter dk (mm) | Head Thickness k (mm) | Total Length L (mm) |
| M3 | 3 | 5 | 5 | 8 | 0.8 | 9 |
| M4 | 4 | 6 | 6 | 9 | 0.8 | 10.7 |
| M5 | 5 | 7 | 7 | 10 | 1 | 13 |
| M6 | 6 | 8.9 | 9 | 12 | 1.5 | 15 |
| M8 | 8 | 10.9 | 11 | 14 | 1.5 | 16.5 |
| M10 | 10 | 12.9 | 13 | 16 | 1.8 | 19 |
| M12 | 12 | 14.9 | 15 | 18 | 1.8 | 24 |
Basic Information
