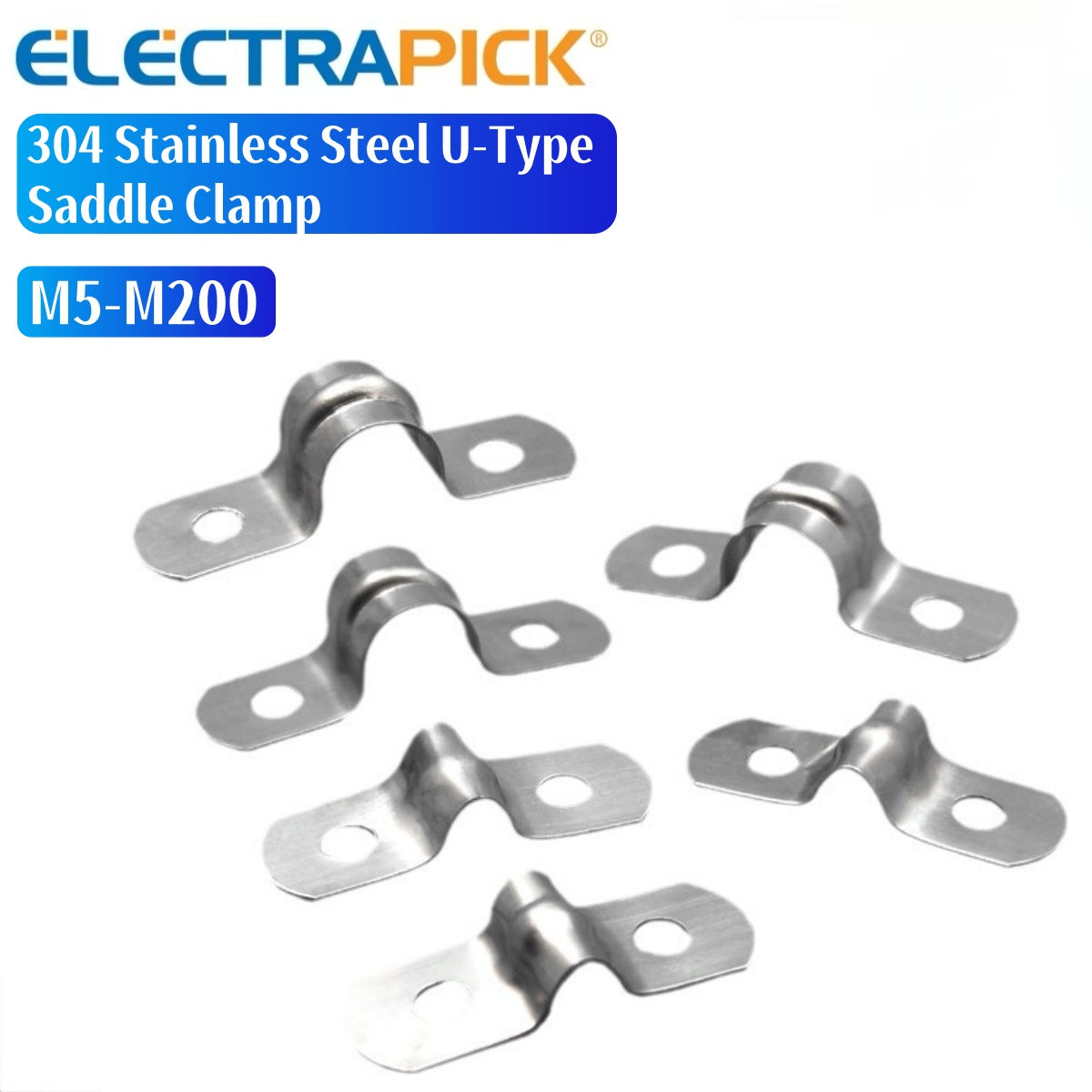

Dimensions chart

Specification sheet

Specification (mm)	(A)Thread Hole	(B) Steel Belt Width	(C) Applicable Pipe Outer Diameter	(S) Steel Belt Thickness	(TL) Total Length	(L) Thread Hole Distance
5	4	12	5	0.6	39	20
8	4	12	8	0.6	38	23
10	4	12	10	0.6	40	25
12	4	12	12	0.6	42	27
14	4	12	14	0.6	47	32
16	6	18	16	0.6	51	38
18	6	18	18	0.6	53	40
20	6	18	20	0.6	55	43
22	6	18	22	0.6	65	53
25	6	18	25	0.6	69	56
27	6	18	27	0.6	70	57
30	6	18	30	0.6	72	60
32	6	18	32	0.6	74	62
35	6	18	35	0.6	76	64
40	6	18	40	0.6	82	69
42	6	18	42	0.6	82	72
45	6	18	45	0.6	87	75
50	6	18	50	0.6	96	82
57	6	18	57	0.6	98	89
60	6	18	60	0.6	103	92
63	6	18	63	0.6	105	96
65	6	18	65	0.6	108	98
70	6	18	70	0.6	116	103
75	6	18	75	0.6	120	105
80	6	18	80	0.6	125	110
90	6	18	90	0.6	130	120
100	6	18	100	0.6	140	130
110	6	18	110	0.6	150	140
115	6	18	115	0.6	160	145
120	6	18	120	0.6	170	150
130	6	18	130	0.6	180	160
140	6	18	140	0.6	190	170
150	6	18	150	0.6	200	180
160	6	18	160	0.6	210	190
170	6	18	170	0.6	220	200
180	6	18	180	0.6	225	210
190	6	18	190	0.6	230	220
200	6	18	200	0.6	240	230
