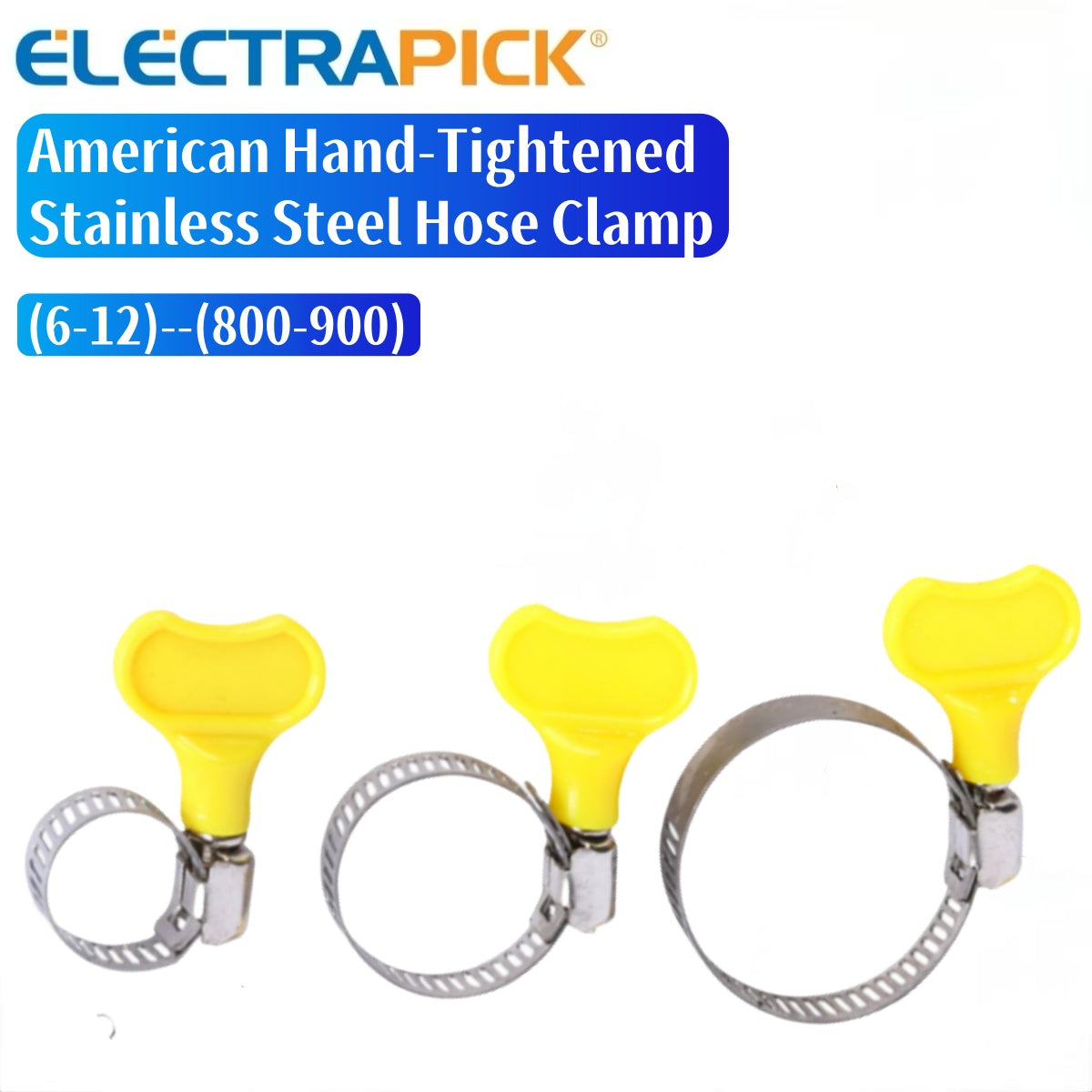

ELECTRAPICK American Hand-Tightened Stainless Steel Hose Clamp

ELECTRAPICK American Hand-Tightened Stainless Steel Hose Clamp

$1.99 USD
$1.99 USD
促销 售罄
Specification

Dimensions chart


Specification sheet

Specification Band Width (mm) Thickness (mm) Minimum Diameter (mm) Maximum Diameter (mm) Steel Band Length (mm)
6-12 8 0.6 6 12 52
10-16 8 0.6 10 16 60
13-19 8 0.6 13 19 68
16-25 8 0.6 16 25 88
19-29 8 0.6 19 29 100
13-23 12 0.6 13 23 90
14-27 12 0.6 14 27 92
18-32 12 0.6 18 32 108
21-38 12 0.6 21 38 138
21-44 12 0.6 21 44 150
27-51 12 0.6 27 51 168
33-57 12 0.6 33 57 186
40-63 12 0.6 40 63 206
46-70 12 0.6 46 70 230
52-76 12 0.6 52 76 250
59-82 12 0.6 59 82 265
65-89 12 0.6 65 89 288
72-95 12 0.6 72 95 305
78-101 12 0.6 78 101 328
84-108 12 0.6 84 108 350
91-114 12 0.6 91 114 365
105-127 12 0.6 105 127 410
118-140 12 0.6 118 140 448
130-152 12 0.6 130 152 485
141-165 12 0.6 141 165 524
155-178 12 0.6 155 178 564
175-197 12 0.6 175 197 626
194-216 12 0.6 194 216 688
213-235 12 0.6 213 235 746
232-254 12 0.6 232 254 805
251-273 12 0.6 251 273 863
270-292 12 0.6 270 292 924
289-311 12 0.6 289 311 985
300-400 12 0.6 300 400 1264
400-500 12 0.6 400 500 1575
150-250 12 0.6 150 250 790
250-350 12 0.6 250 350 1100
350-450 12 0.6 350 450 1418
450-550 12 0.6 450 550 1732
500-600 12 0.6 500 600 1870
600-700 12 0.6 600 700 2200
700-800 12 0.6 700 800 2515
800-900 12 0.6 800 900 2830
