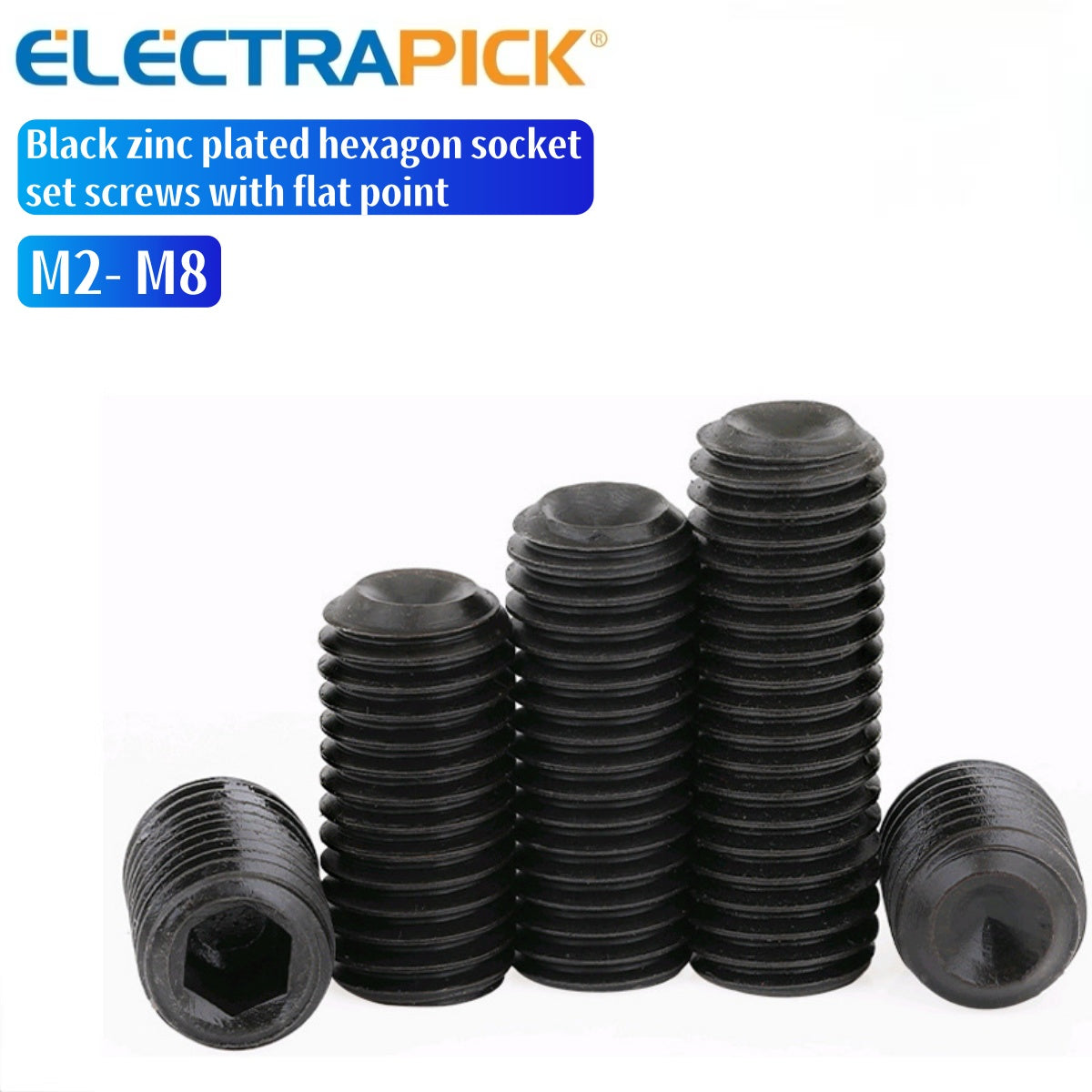

ELECTRAPICK Black zinc plated hexagon socket set screws with flat point

ELECTRAPICK Black zinc plated hexagon socket set screws with flat point

$0.99 USD
$0.99 USD
促销 售罄
Thread Nominal (M)
Nominal length(mm)

Dimensions chart


Specification sheet

unit:nn
Thread specification Thread pitch                       S t
d P Nominal nax nin
M1.4 0.3 0.7 0.724 0.711 0.6
M1.6 0.35 0.7 0.724 0.711 0.7
M1.8 0.35 0.7 0.724 0.711 0.8
M2 0.4 0.9 0.902 0.889 0.8
M2.5 0.45 1.3 1.295 1.27 1.2
M3 0.5 1.5 1.545 1.52 1.2
M4 0.7 2 2.045 2.02 1.5
M5 0.8 2.5 2.56 2.52 2
M6 1 3 3.08 3.02 2
M8 1.25 4 4.095 4.02 3
M10 1.5 5 5.095 5.02 4
M12 1.75 6 6.095 6.02 4.8
M14 2 6 6.095 6.02 5.6
M16 2 8 8.115 8.025 6.4
][18 2.5 10 10.12 10.03 7.2
M20 2.5 10 10.12 10.03 8
