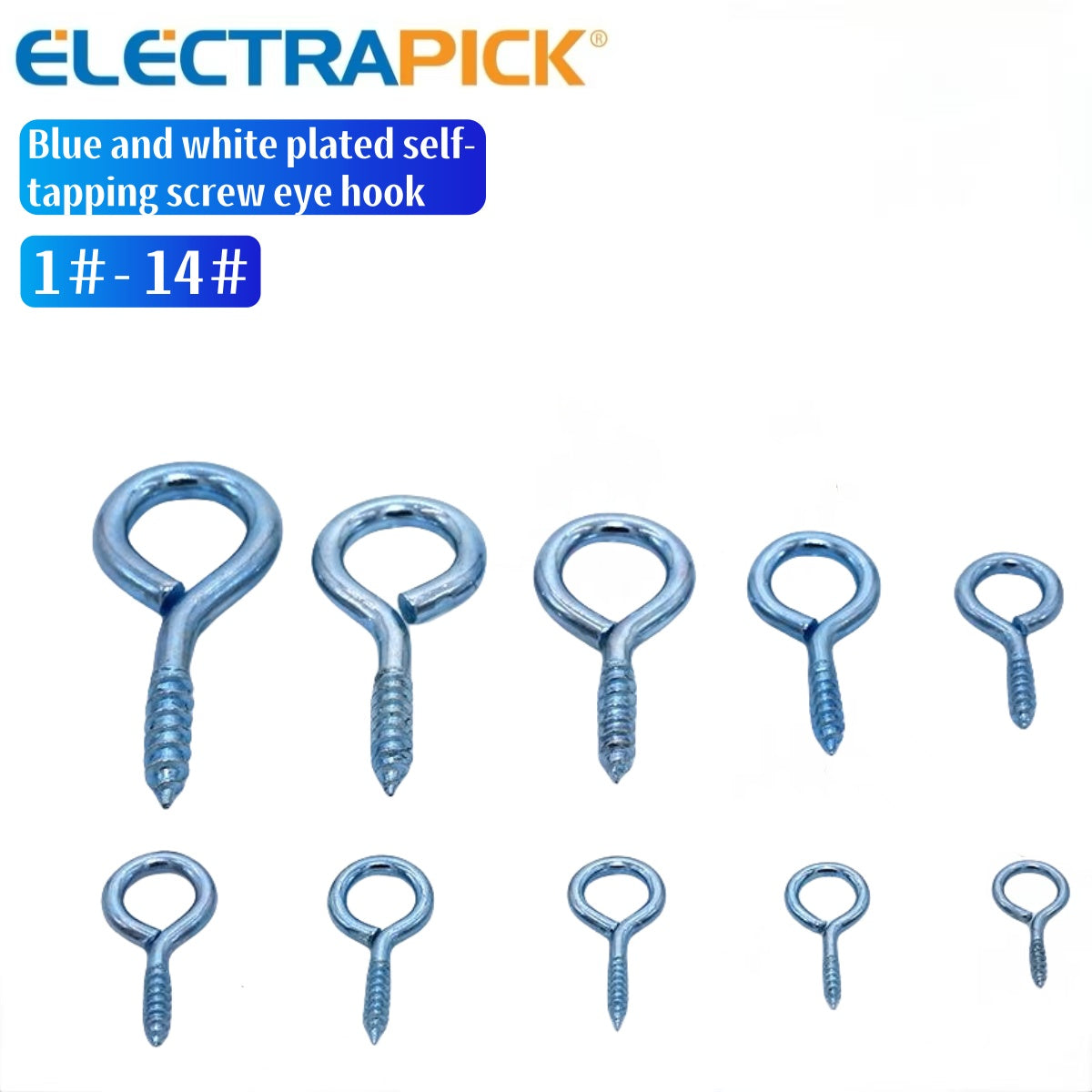

ELECTRAPICK Blue and white plated self-tapping screw eye hook
ELECTRAPICK Blue and white plated self-tapping screw eye hook
常规价格
$0.99 USD
常规价格
促销价
$0.99 USD
单价
/
单价
Dimensions chart
Specification sheet
1# | 2# | 3# | 4# | 5# | 6# | 8# | 10# | 12# | 14# | ||
Thread Coarse | 1.99 | 2.09 | 2.5 | 3.0 | 3.4 | 3.7 | 4.0 | 4.4 | 5.13 | 5.7 | |
Overall length | 18.2 | 21.3 | 24.9 | 26.4 | 28.23 | 29.78 | 36 | 42 | 47.63 | 55 | |
Thread length | 6.8 | 6.83 | 9.7 | 11.8 | 10.9 | 12.4 | 13.85 | 17 | 17 | 20.3 | |
Pole length | 9.58 | 11.4 | 13.0 | 14.3 | 15.5 | 15.51 | 19.92 | 20 | 24.5 | 27.32 | |
Thick pole | 1.51 | 1.78 | 2.15 | 2.4 | 2.7 | 3.04 | 3.32 | 3.82 | 4.13 | 4.8 | |
Inner diameter of ring | 5.98 | 6.5 | 7 | 7.4 | 7.9 | 8.0 | 9.76 | 11.82 | 13 | 14.2 | |
