ELECTRAPICK

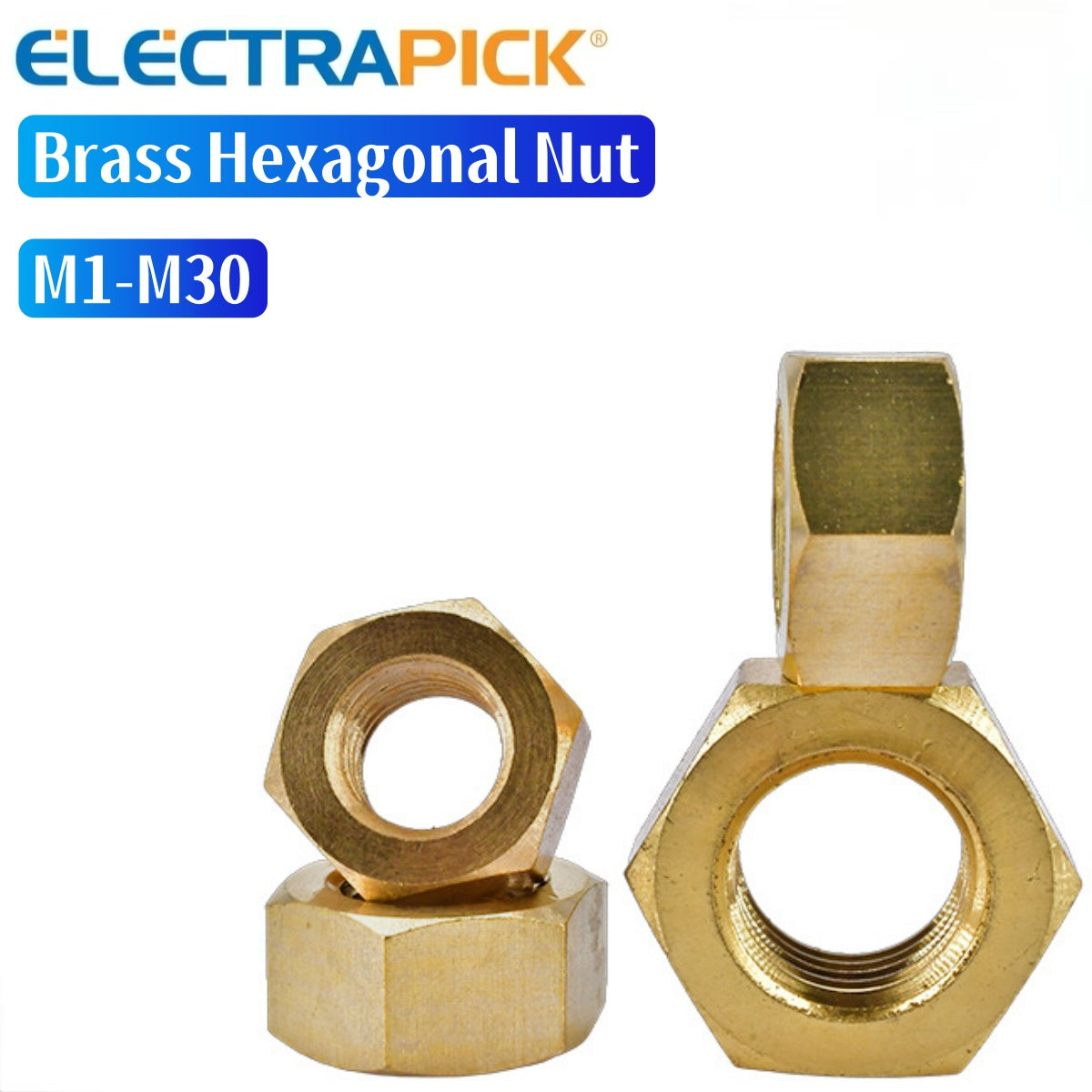

ELECTRAPICK Brass Hexagonal Nut

ELECTRAPICK Brass Hexagonal Nut

$1.99 USD
$1.99 USD
促销 售罄
Nominal Diameter

Dimensions chart


Specification sheet

Nominal Diameter D Pitch P m S
max min max min
M1 0.25 0.8 0.55 2.5 2.4
M1.2 0.25 1 0.75 3 2.9
M1.4 0.3 1.2 0.95 3 2.9
M1.6 0.35 1.3 1.05 3.2 3.02
M1.7 0.35 1.4 1.15 3.5 3.38
M2 0.4 1.6 1.35 4 3.82
M2.3 0.45 1.8 1.55 4.5 4.32
M2.5 0.45 2 1.75 5 4.82
M2.6 0.45 2 2.15 5 4.82
M3 0.5 2.4 2.55 5.5 5.32
M3.5 0.6 2.8 2.9 6 5.82
M4 0.7 3.2 3.7 7 6.78
M5 0.8 4 3.7 8 7.78
M6 1 5 4.7 10 9.78
M7 1 5.5 5.2 11 10.73
M8 1/1.25 6.5 6.14 13 12.73
M10 1/1.25/1.5 8 7.64 17 16.73
M12 1.25/1.5/1.75 10 9.64 19 18.67
M14 1.5/2 11 10.3 22 21.67
M16 1.5/2 13 12.3 24 23.67
M18 1.5/2/2.5 15 14.3 27 26.16
M20 1.5/2/2.5 16 14.9 30 29.16
M22 1.5/2/2.5 18 16.9 32 31
M24  2/3 19 17.7 36 35
M27  2/3 22 20.7 41 40
M30 2/3.5 24 20.7 46 45


Basic Information
