ELECTRAPICK

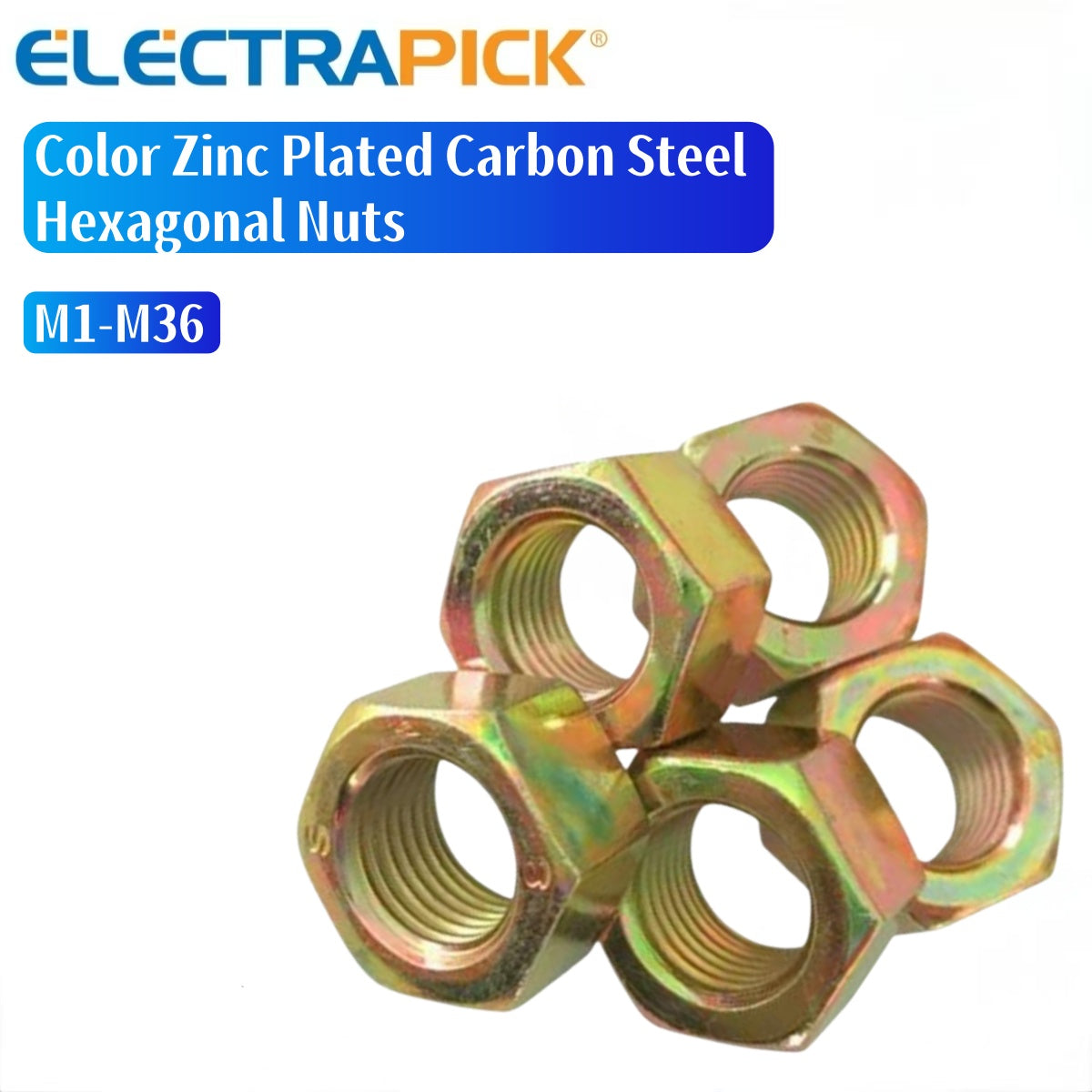

ELECTRAPICK Color Zinc Plated Carbon Steel Hexagonal Nuts

ELECTRAPICK Color Zinc Plated Carbon Steel Hexagonal Nuts

常规价格 $0.10 USD
常规价格 促销价 $0.10 USD
促销 售罄
Thread Nominal (M)

Dimensions chart


Specification sheet

Nominal diameter d Thread pitch p                   m                    s
max min max min
M1 0.25 0.65 0.55 2.5 2.4
M1.2 0.25 0.85 0.75 2.8 2.7
M1.4 0.3 1.05 0.95 3.1 3.0
M1.6 0.35 1.2 1.1 3.3 3.2
M2 0.4 1.7 1.6 4 3.8
M2.5 0.45 2 1.9 5 4.8
M2.6 0.45 2.25 2.15 5 4.8
M3 0.5 2.4 2.55 5.5 5.32
M4 0.7 3.2 2.9 7 6.78
M5 0.8 4 3.7 8 7.78
M6 1 5.1 5.0 10 9.78
M8 1/1.25 6.6 6.5 13 12.73
M10 1/1.25/1.5 8.2 8.1 16.1 15.9
M12 1.25/1.5/1.75 10.6 10.5 18.1 17.9
M14 1.5/2 12.3 12.2 20.8 20.7
M16 1.5/2 14.4 14.2 24 23.67
M18 1.5/2/2.5 15.5 15.3 27 26.16
M20 1.5/2/2.5 17.1 16.9 30 29.16
M22 1.5/2/2.5 18.3 18.1 33.3 33.1
M24 2/3 20.8 20.6 36 35
M27 2/3 23.5 23.1 41 40
M30 2/3.5 24.9 24.5 46 45
M36 4 29 27.4 55 53.8


Basic Information
