ELECTRAPICK

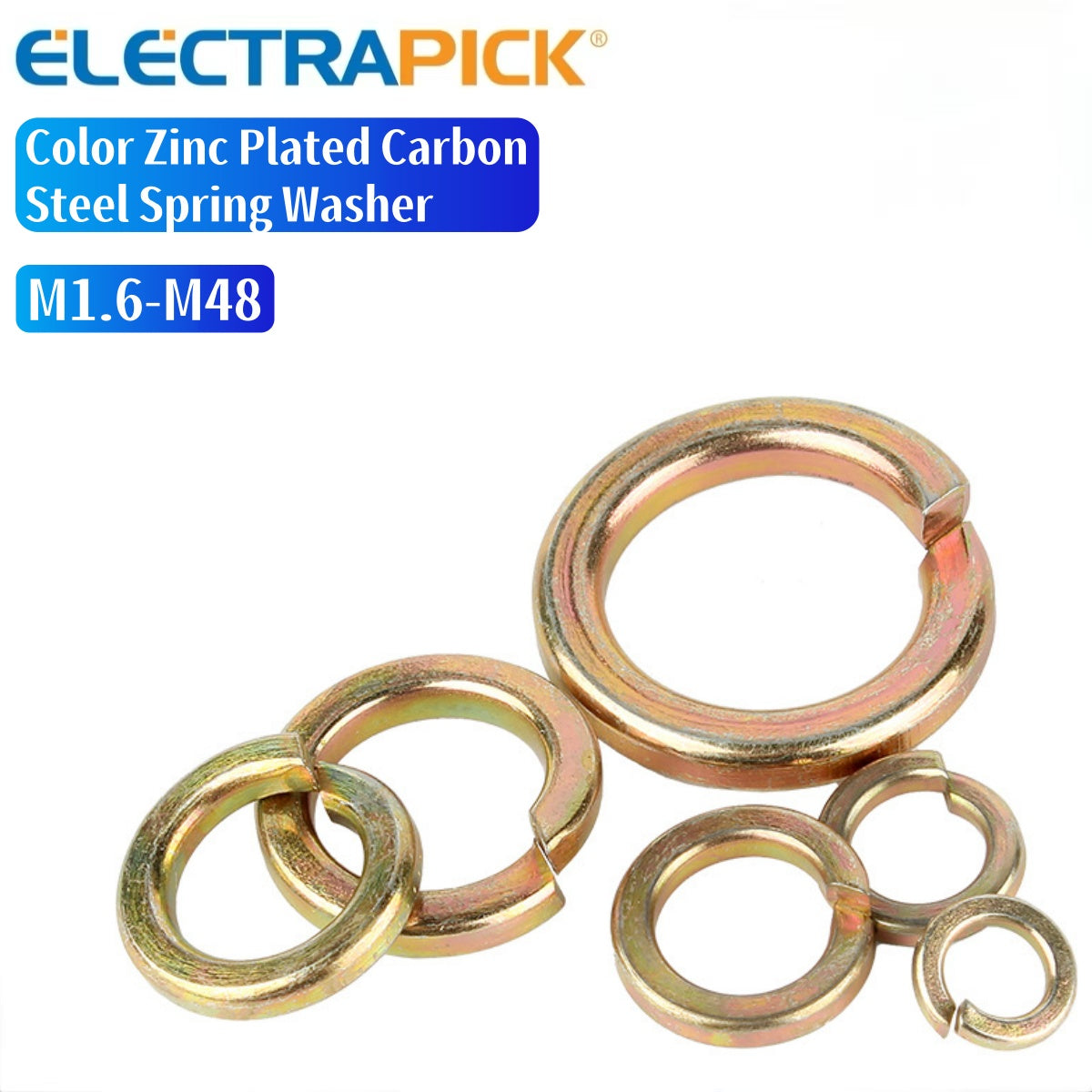

ELECTRAPICK Color Zinc Plated Carbon Steel Spring Washer

ELECTRAPICK Color Zinc Plated Carbon Steel Spring Washer

$0.03 USD
$0.03 USD
促销 售罄
Washer inner diameter

Dimensions chart


Specification sheet

mm
TYPE M1.6 M2 M2.5 M3 M4 M5 M6 MB M10 M12 M14 M16
 d 1.66 2.22 2.72 3.3 4.2 5.3 6.53 8.35 10.6 12.5 14.5 16.5
 h 0.55 0.49 0.64 0.8 1.1 1.3 1.6 2.1 2.56 3.1 3.62 4.12
 H 0.88 1.1 1.52 1.92 2.52 2.83 3.81 4.63 5.82 6.92 6.72 9.21
dk 2.9 3.3 4.3 5.1 6.4 8.0 9.8 13 15 18 22 25
type M18 M20 M22 M24 M27 M30 M33 M36 M39 M42 M45 M48
d 18.63 20.83 22.84 24.73 27.93 30.83 33.96 36.84 39.84 42.83 45.83 48.9
 h 4.52 4.93 5.61 5.93 6.83 7.5 8.5 8.96 10.1 10.5 10.95 12
 H 10.12 11.3 12.52 13.5 15.21 16.73 19.52 20.3 23.1 24.32 25.3 26
dk 27.5 30.9 34 36.8 41.3 46 51


Basic Information
