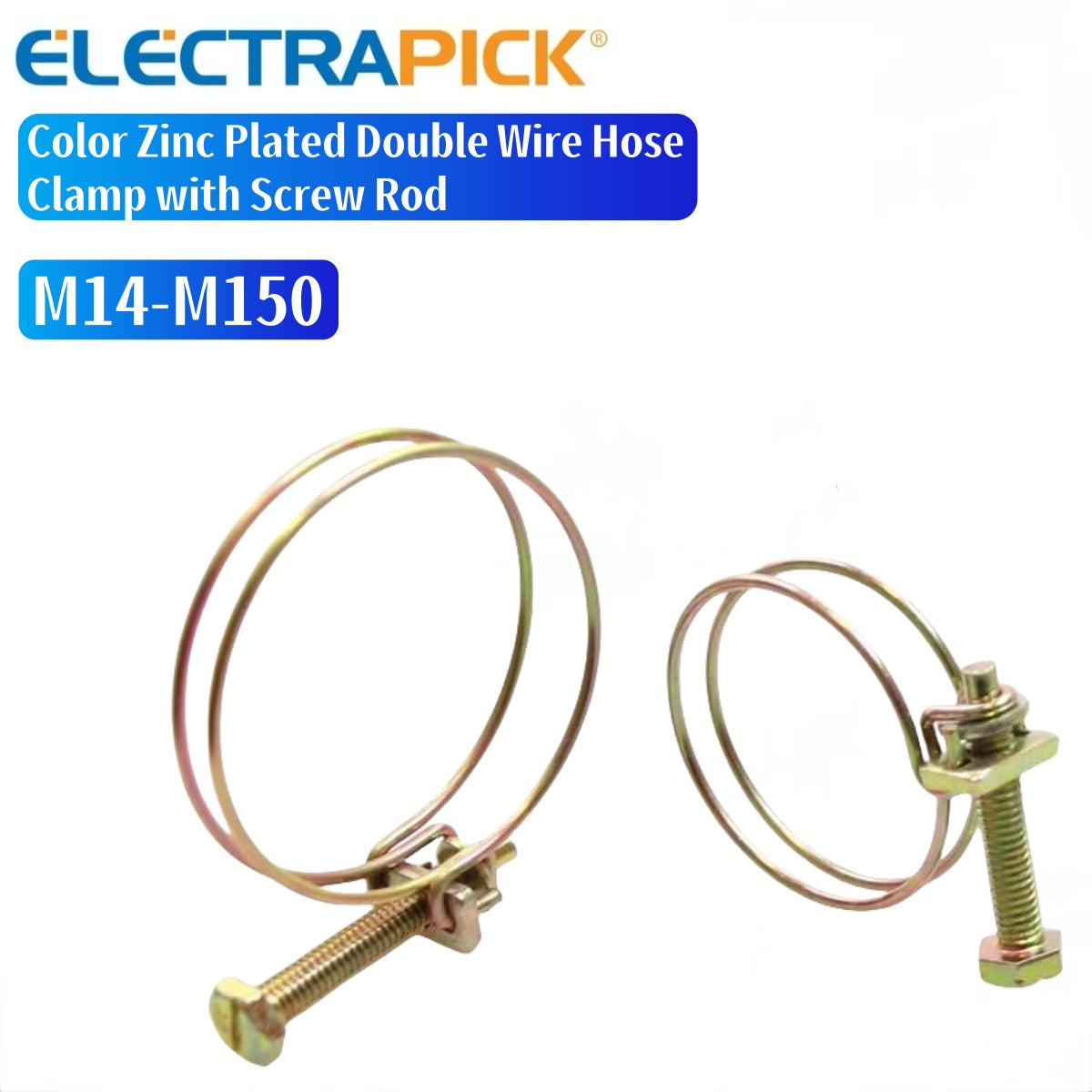

Dimensions chart

Specification sheet

Nominal Diameter	D (max)	D (min)	L (min)	F (max)	Tightening State D (Reference)
M14	15	14	22	10	11
M16	17	16	22	10	13
M18	19	18	22	10	15
M20	21	20	22	10	17
M22	23	22	22	10	18
M24	25	24	22	10	20
M26	27	26	22	10	22
M28	29	28	22	10	24
M30	31.5	30	29	13	26
M32	33.5	32	29	13	28
M35	36.5	35	29	13	31
M38	39.5	38	29	13	34
M40	41.5	40	29	13	35
M42	43.5	42	29	13	37
Nominal Diameter	D (max)	D (min)	L (min)	F (max)	Tightening State D (Reference)
M45	46.5	45	29	13	40
M48	49.5	48	29	13	43
M50	51.5	50	29	13	45
M52	53.5	52	29	13	47
M55	56.5	55	29	13	50
M58	59.5	58	29	13	53
M60	61.5	60	29	13	55
M62	63.5	62	29	13	57
M65	66.5	65	29	13	60
M68	69.5	68	35	13	63
M70	71.5	70	35	13	65
M75	76.5	75	35	13	70
M80	81.5	80	35	13	75
M85	86.5	85	35	13	79
Nominal Diameter	D (max)	D (min)	L (min)	F (max)	Tightening State D (Reference)
M90	91.5	90	35	13	84
M95	96.5	95	35	13	89
M100	101.5	100	35	13	94
M105	107	105	35	13	98
M110	112	110	35	13	103
M115	117	115	35	13	108
M120	122	120	35	13	113
M125	127	125	35	13	118
M130	132	130	35	13	123
M135	137	135	35	13	128
M140	142	140	35	13	133
M145	147	145	35	13	138
M150	152	150	35	13	143
