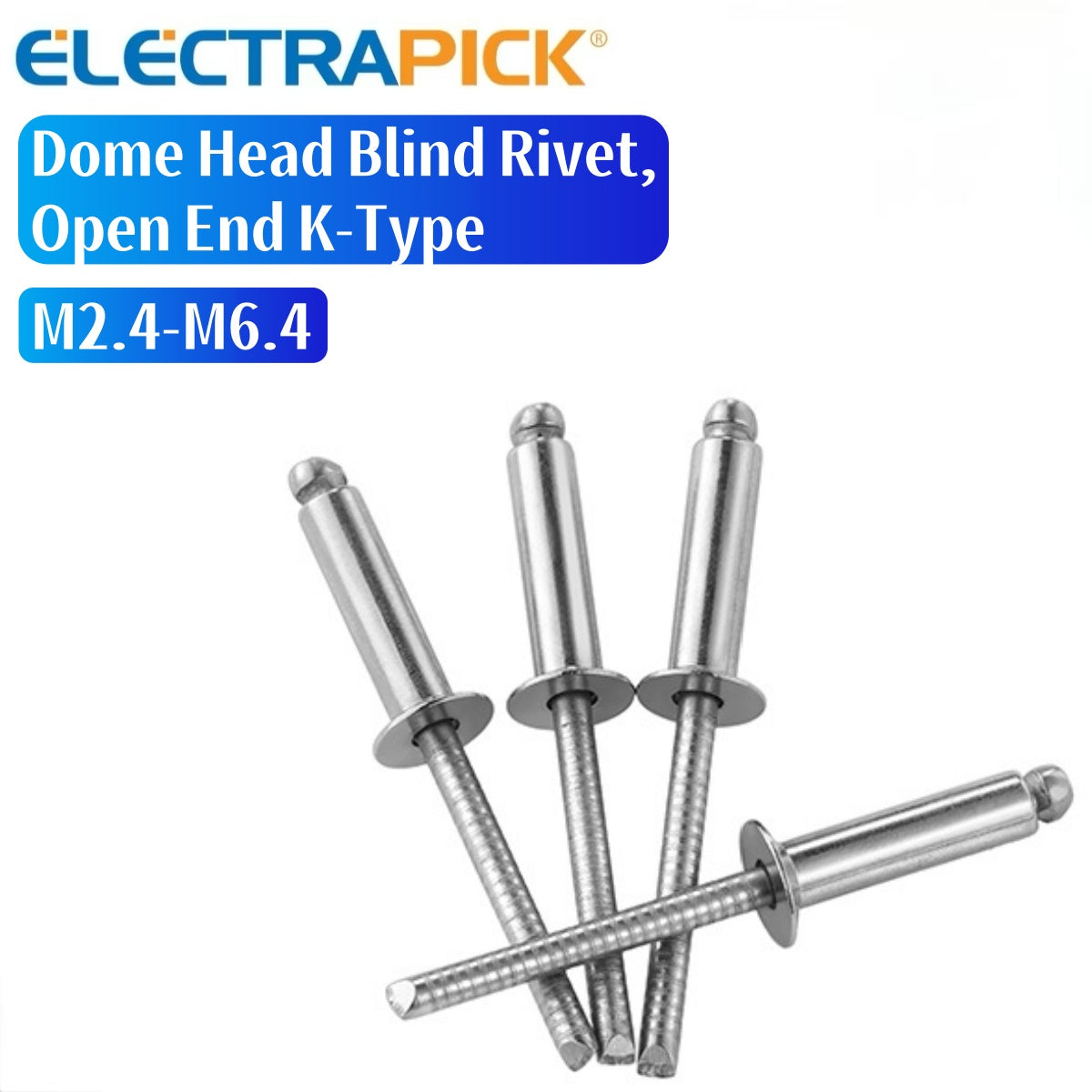

ELECTRAPICK Dome Head Blind Rivet, Open End K-Type
ELECTRAPICK Dome Head Blind Rivet, Open End K-Type
常规价格
$1.99 USD
常规价格
促销价
$1.99 USD
单价
单价
无法加载取货服务可用情况
Dimensions chart
Specification sheet
| Nominal Diameter d | d (max) | d (min) | dk (max) | dk (min) | k (max) | d₁ (max) | L₁ (min) | b (max) |
| M2.4 | 2.48 | 2.25 | 5 | 4.2 | 1 | 1.55 | 25 | L(max)+3.5 |
| M3 | 3.08 | 2.85 | 6.3 | 5.4 | 1.3 | 2 | 25 | L(max)+3.5 |
| M3.2 | 3.28 | 3.05 | 6.7 | 5.8 | 1.3 | 2 | 25 | L(max)+4 |
| M4 | 4.08 | 3.85 | 8.4 | 6.9 | 1.7 | 2.45 | 27 | L(max)+4 |
| M4.8 | 4.88 | 4.65 | 10.1 | 8.3 | 2 | 2.95 | 27 | L(max)+4.5 |
| M5 | 5.08 | 4.85 | 10.5 | 8.7 | 2.1 | 2.95 | 27 | L(max)+4.5 |
| M6 | 6.08 | 5.85 | 12.6 | 10.8 | 2.5 | 3.4 | 27 | L(max)+5 |
| M6.4 | 6.48 | 6.25 | 13.4 | 11.6 | 2.7 | 3.9 | 27 | L(max)+5.5 |
