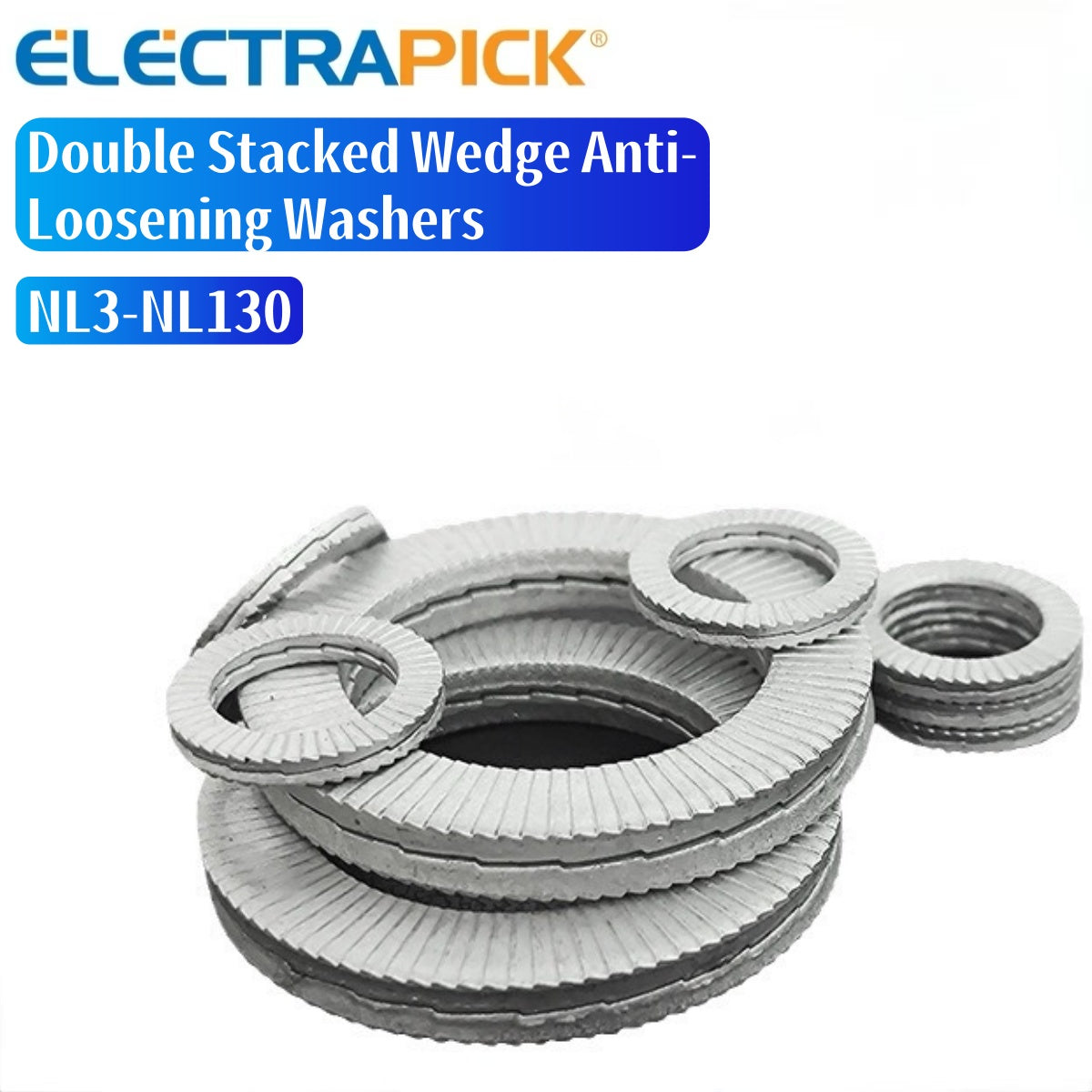

ELECTRAPICK Double Stacked Wedge Anti-Loosening Washers
ELECTRAPICK Double Stacked Wedge Anti-Loosening Washers
常规价格
$1.99 USD
常规价格
促销价
$1.99 USD
单价
单价
无法加载取货服务可用情况
Dimensions chart
Specification sheet
| Washer size | Bolt size Metric | UNC | Ø.mm | Thickness T [mm] | Approx. weight [kg/100 pairs] |
|---|---|---|---|---|---|
| NL3 | M3 | #5 | 3.4 | 7.0 | 1.8 |
| NL3.5 | M3.5 | #6 | 3.9 | 7.6 | 1.8 |
| NL3.5sp | M3.5 | #6 | 3.9 | 9.0 | 1.8 |
| NL4 | M4 | #8 | 4.4 | 7.6 | 1.8 |
| NL4sp | M4 | #8 | 4.4 | 9.0 | 1.8 |
| NL5 | M5 | #10 | 5.4 | 9.0 | 1.8 |
| NL5sp | M5 | #10 | 5.4 | 10.8 | 1.8 |
| NL6 | M6 | 6.5 | 10.8 | 1.8 | |
| NL6sp | M6 | 6.5 | 13.5 | 2.5 | |
| NL1/4" | 1/4" | 7.2 | 11.5 | 1.8 | |
| NL1/4"sp | 1/4" | 7.2 | 13.5 | 2.5 | |
| NL8 | M8 | 5/16" | 8.7 | 13.5 | 2.5 |
| NL8sp | M8 | 5/16" | 8.7 | 16.6 | 2.5 |
| NL3/8" | 3/8" | 10.3 | 16.6 | 2.5 | |
| NL3/8"sp | 3/8" | 10.3 | 21.0 | 2.5 | |
| NL10 | M10 | 10.7 | 16.6 | 2.5 | |
| NL10sp | M10 | 10.7 | 21.0 | 2.5 | |
| NL11 | M11 | 7/16" | 11.4 | 18.5 | 2.5 |
| NL12 | M12 | 13.0 | 19.5 | 2.5 | |
| NL12sp | M12 | 13.0 | 25.4 | 3.4 | |
| NL1/2" | 1/2" | 13.5 | 19.5 | 2.5 | |
| NL1/2"sp | 1/2" | 13.5 | 25.4 | 3.4 | |
| NL14 | M14 | 9/16" | 15.2 | 23.0 | 3.4 |
| NL14sp | M14 | 9/16" | 15.2 | 30.7 | 3.4 |
| NL16 | M16 | 5/8" | 17.0 | 25.4 | 3.4 |
| NL16sp | M16 | 5/8" | 17.0 | 30.7 | 3.4 |
| NL18 | M18 | 19.5 | 29.0 | 3.4 | |
| NL18sp | M18 | 19.5 | 34.5 | 3.4 | |
| NL3/4" | 3/4" | 20.0 | 30.7 | 3.4 | |
| NL3/4"sp | 3/4" | 20.0 | 39.0 | 3.4 | |
| NL20 | M20 | 21.4 | 30.7 | 3.4 | |
| NL20sp | M20 | 21.4 | 39.0 | 3.4 | |
| NL22 | M22 | 7/8" | 23.4 | 34.5 | 3.4 |
| NL22sp | M22 | 7/8" | 23.4 | 42.0 | 4.6 |
| NL24 | M24 | 25.3 | 39.0 | 3.4 | |
| NL24sp | M24 | 25.3 | 48.5 | 4.6 | |
| NL1" | 1" | 27.9 | 39.0 | 3.4 | |
| NL1"sp | 1" | 27.9 | 48.5 | 4.6 |
| Washer size | Bolt size Metric | UNC | Ø.mm | Thickness T [mm] | Approx. weight [kg/100 pairs] |
|---|---|---|---|---|---|
| NL27 | M27 | 28.4 | 42.0 | 5.8 | |
| NL27sp | M27 | 28.4 | 48.5 | 5.8 | |
| NL30 | M30 | 1-1/8" | 31.4 | 47.0 | 5.8 |
| NL30sp | M30 | 1-1/8" | 31.4 | 58.5 | 6.6 |
| NL33 | M33 | 1-1/4" | 34.4 | 48.5 | 5.8 |
| NL33sp | M33 | 1-1/4" | 34.4 | 58.5 | 6.6 |
| NL36 | M36 | 1-3/8" | 37.4 | 55.0 | 5.8 |
| NL36sp | M36 | 1-3/8" | 37.4 | 63.0 | 6.6 |
| NL39 | M39 | 1-1/2" | 40.4 | 58.5 | 5.8 |
| NL42 | M42 | 43.2 | 63.0 | 5.8 | |
| NL45 | M45 | 1-3/4" | 46.2 | 70.0 | 7.0 |
| NL48 | M48 | 49.6 | 75.0 | 7.0 | |
| NL52 | M52 | 2" | 53.6 | 80.0 | 7.0 |
| NL56 | M56 | 2-1/4" | 59.1 | 85.0 | 7.0 |
| NL60 | M60 | 63.1 | 90.0 | 7.0 | |
| NL64 | M64 | 2-1/2" | 67.1 | 95.0 | 7.0 |
| NL68 | M68 | 71.1 | 100.0 | 9.5 | |
| NL72 | M72 | 75.1 | 105.0 | 9.5 | |
| NL76 | M76 | 3" | 79.1 | 110.0 | 9.5 |
| NL80 | M80 | 3-1/8" | 83.1 | 115.0 | 9.5 |
| NL85 | M85 | 88.1 | 120.0 | 9.5 | |
| NL90 | M90 | 92.4 | 130.0 | 9.5 | |
| NL95 | M95 | 97.4 | 135.0 | 9.5 | |
| NL100 | M100 | 4" | 103.4 | 145.0 | 9.5 |
| NL105 | M105 | 108.4 | 150.0 | 9.5 | |
| NL110 | M110 | 113.4 | 155.0 | 9.5 | |
| NL115 | M115 | 118.4 | 165.0 | 9.5 | |
| NL120 | M120 | 123.4 | 170.0 | 9.5 | |
| NL125 | M125 | 128.4 | 173.0 | 9.5 | |
| NL130 | M130 | 5" | 133.4 | 178.0 | 9.5 |
