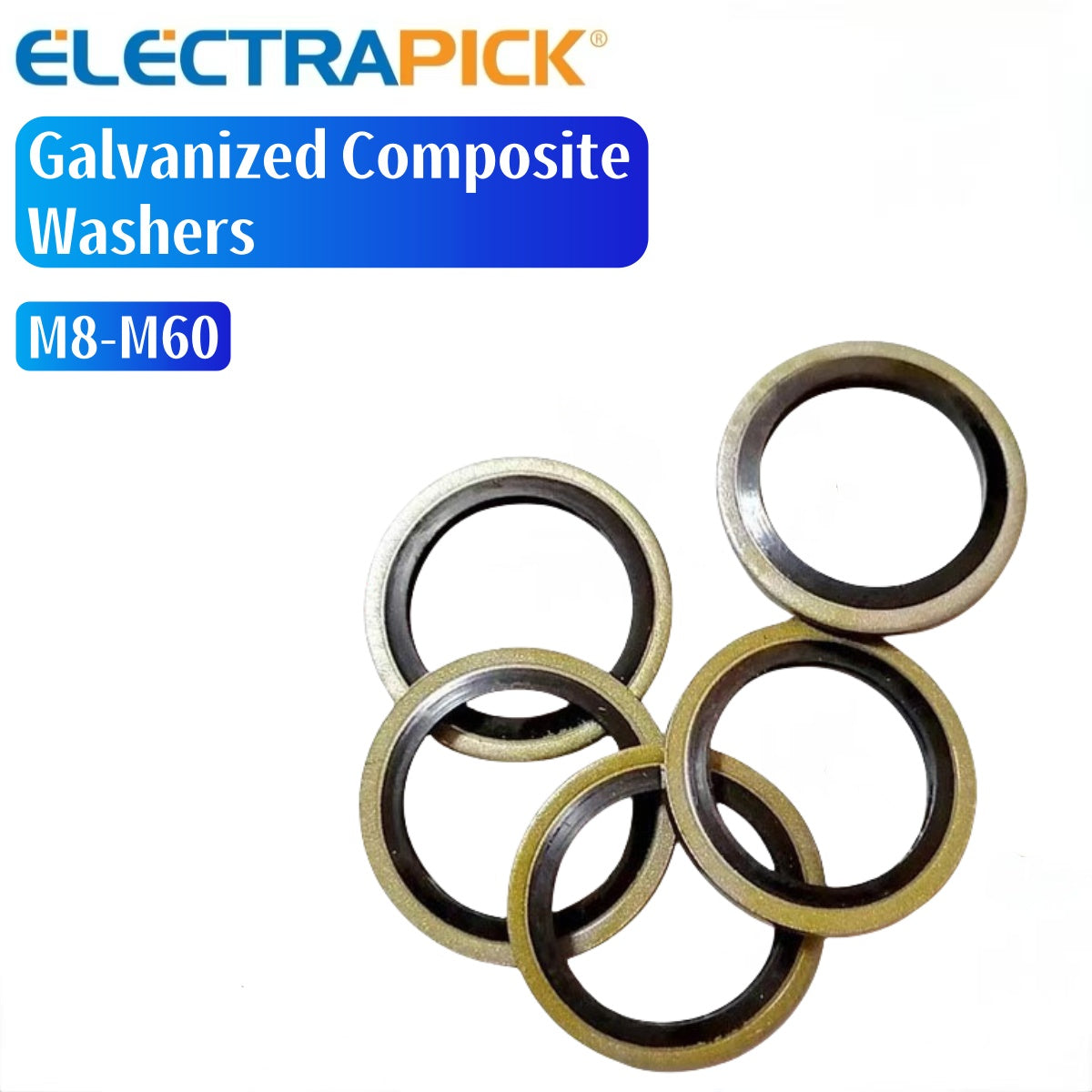

ELECTRAPICK Galvanized Composite Washers

ELECTRAPICK Galvanized Composite Washers

$1.99 USD
$1.99 USD
促销 售罄
Nominal Diameter

Dimensions chart


Specification sheet

Nominal Diameter (d) 8 10 12 14 16 18 20 22 24 27
d1 Nominal 8.4 10.4 12.4 14.4 16.4 18.4 20.5 22.5 24.5 27.5
Maximum 8.52 10.52 12.52 14.52 16.52 18.52 20.64 22.64 24.64 27.64
Minimum 8.28 10.28 12.28 14.28 16.28 18.28 20.36 22.36 24.36 27.36
d2 Maximum 10.24 12.24 14.24 16.24 18.24 20.28 23.28 25.28 27.28 30.28
Minimum = Nominal 10 12 14 16 18 20 23 25 27 30
D Maximum = Nominal 14 16 18 20 22 25 28 30 32 35
Minimum 13.76 15.76 17.76 19.72 21.72 24.72 27.72 29.72 31.66 34.66
h 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7
Nominal Diameter (d) 30 33 36 39 42 45 48 52 60
d1 Nominal 30.5 33.5 36.6 39.6 42.6 45.6 48.7 52.7 60.7
Maximum 30.64 33.67 36.77 39.77 42.77 45.77 48.87 52.9 60.9
Minimum 30.36 33.33 36.43 39.43 42.43 45.43 48.53 52.5 60.5
d2 Maximum 33.34 36.34 40.34 43.34 46.34 49.34 52.4 56.4 64.4
Minimum = Nominal 33 36 40 43 46 49 52 56 64
D Maximum = Nominal 38 42 46 50 53 56 60 66 75
Minimum 37.66 41.66 45.66 49.66 52.6 55.6 59.6 65.6 74.6
h 2.7 2.7 2.9 2.9 2.9 2.9 2.9 2.9 2.9
