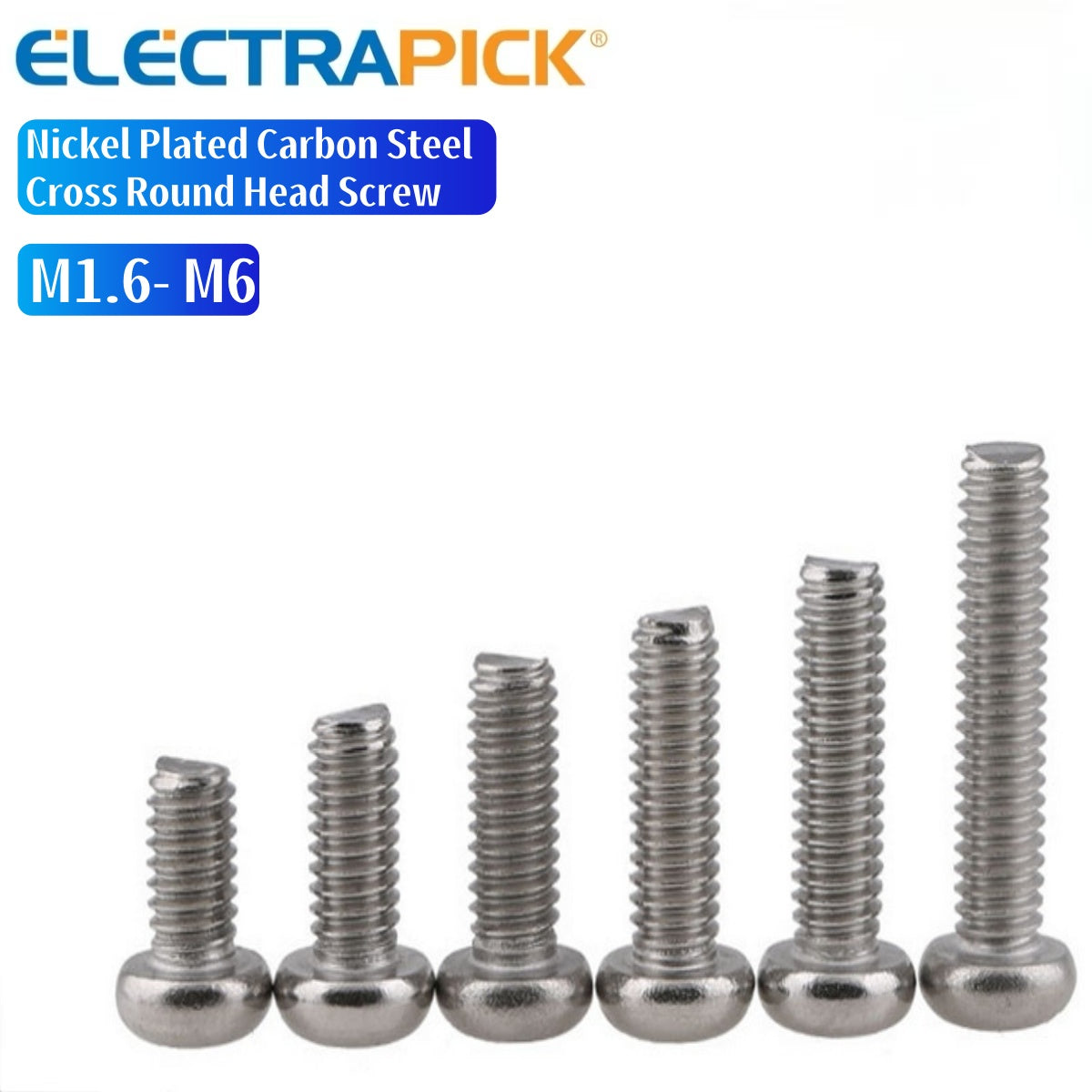

ELECTRAPICK Nickel Plated Carbon Steel Cross Round Head Screw
ELECTRAPICK Nickel Plated Carbon Steel Cross Round Head Screw
常规价格
$1.99 USD
常规价格
$0.99 USD
促销价
$1.99 USD
单价
单价
无法加载取货服务可用情况
Dimensions chart
Specification sheet
| Thread size |
M1.6 | M2 | M2.5 | M3 | M3.5 | M4 | M5 | M6 | ||
| P | Pitch | 0.35 | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | |
| a | Maximum value | 0.7 | 0.8 | 0.9 | 1 | 1.2 | 1.4 | 1.6 | 2 | |
| d. | 2 | 6 | 3.1 | 3.6 | 4.1 | 4.7 | 5.7 | 6.8 | ||
| dk | Maximum value =nominal | 3.2 | 4.0 | 5.0 | 5.6 | 7.00 | 8.00 | 9.50 | 12.00 | |
| Minimum value | 2.9 | 3.7 | 4.7 | 5.3 | 6.64 | 7.64 | 9.14 | 11.57 | ||
| k | Maximum value=nominal | 1.30 | 1.60 | 2.10 | 2.40 | .60 | 3.10 | 3.70 | 4.6 | |
| Minimum value | 1.16 | 1.46 | 1.96 | 2.26 | 2.46 | 2.92 | 3.52 | 4.3 | ||
| r | Minimum value | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.25 | |
| R | 2.5 | 3.2 | 4 | 5 | 6 | 6.5 | 8 | 10 | ||
| X | Maximum value | 0.9 | 1 | 1.1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | |
| Slot No | 0 | 0 | 1 | 1 | 2 | 2 | 2 | 3 | ||
| M | H-Type reference | 1.7 | 1.9 | 2.7 | 3 | 3.9 | 4.4 | 4.9 | 6.9 | |
| depth | Maximum value | 0.95 | 1.2 | 1.55 | 1.8 | 1.9 | 2.4 | 9 | 3.6 | |
| depth | H-Type Minimum value | 0.7 | 0.9 | 1.15 | 1.4 | 1.4 | 1.9 | 2.4 | 3.1 | |
| M2 | Z-Type reference | 1.6 | 2.1 | 2.6 | 2.8 | 3.9 | 4.3 | 4.7 | 6.7 | |
| depth | Maximum value | 0.9 | 1.42 | 1.5 | 1.75 | 1.93 | 2.34 | 2.74 | 3.46 | |
| depth | Z-Type Minimum Valu | 0.65 | 1.17 | 1.25 | 1.5 | 1.48 | 1.89 | 2.29 | 3.03 | |
