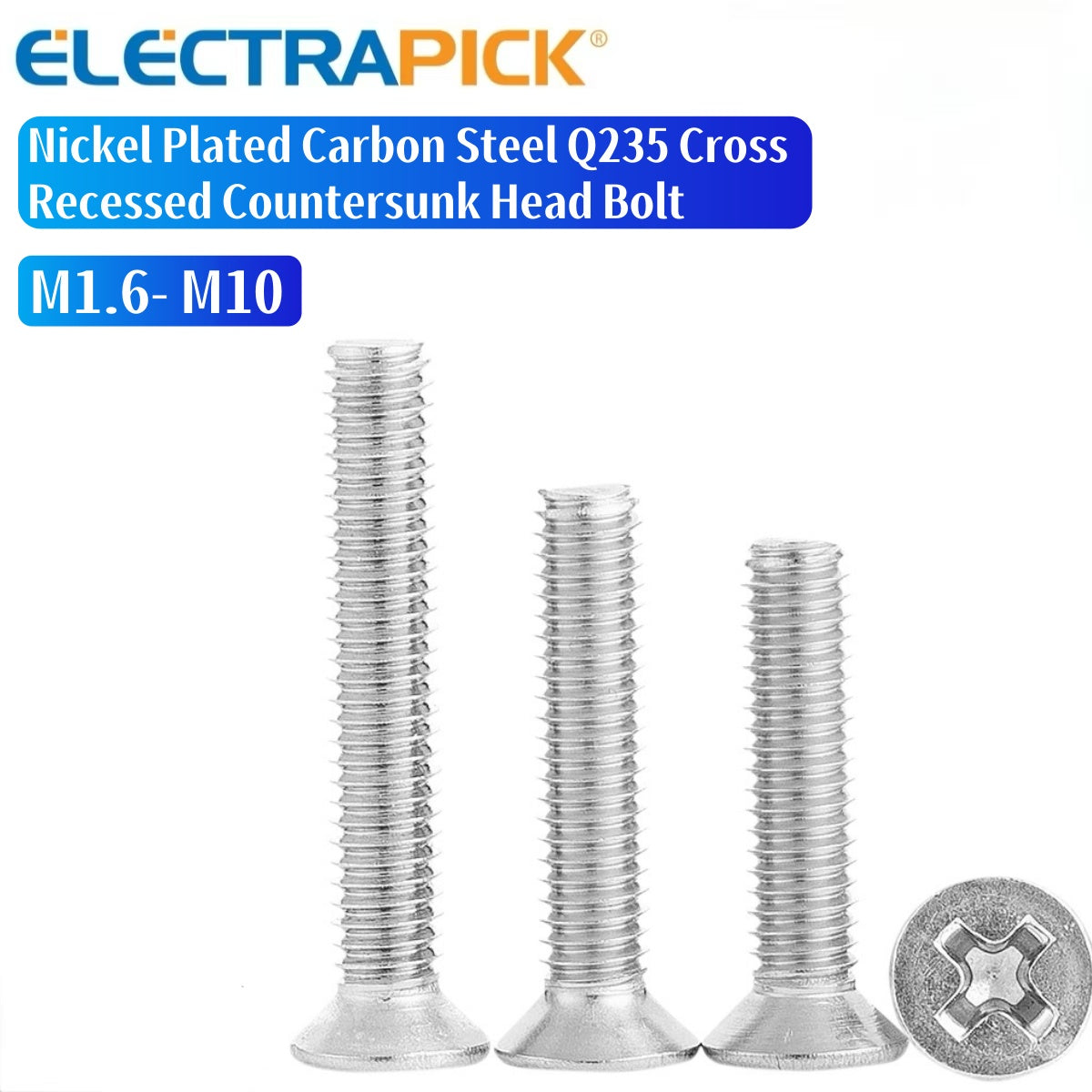

ELECTRAPICK Nickel Plated Carbon Steel Q235 Cross Recessed Countersunk Head Bolt
ELECTRAPICK Nickel Plated Carbon Steel Q235 Cross Recessed Countersunk Head Bolt
常规价格
$1.99 USD
常规价格
促销价
$1.99 USD
单价
/
单价
Dimensions chart
Specification sheet
Thread specification d | M1.6 | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | M10 | ||
P | Pitch | 0.35 | 0.4 | 0.45 | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | |
a | MAX | 0.7 | 0.8 | 0.9 | 1 | 1.4 | 1.6 | 2 | 2.5 | 3 | |
dk | Theoretical value | MAX | 3.6 | 4.4 | 5.5 | 6.3 | 9.4 | 10.4 | 12.6 | 17.3 | 20 |
Actual value | MAX | 3 | 3.8 | 4.7 | 5.5 | 8.4 | 9.3 | 11.3 | 15.8 | 18.3 | |
MIN | 2.7 | 3.5 | 4.4 | 5.2 | 8 | 8.9 | 10.9 | 15.4 | 17.8 | ||
k | MAX | 1 | 1.2 | 1.5 | 1.65 | 2.7 | 2.7 | 3.3 | 4.65 | 5 | |
X | MAX | 0.9 | 1 | 1.1 | 1.25 | 1.75 | 2 | 2.5 | 3.2 | 3.8 | |
Slot No | 0 | 0 | 1 | 1 | 2 | 2 | 3 | 4 | 4 | ||
M1 | 1.6 | 1.9 | 2.9 | 3.2 | 4.6 | 5.2 | 6.8 | 8.9 | 10 | ||
M2 | 1.8 | 2 | 3 | 3.2 | 4.6 | 5.1 | 6.8 | 9 | 10 |
