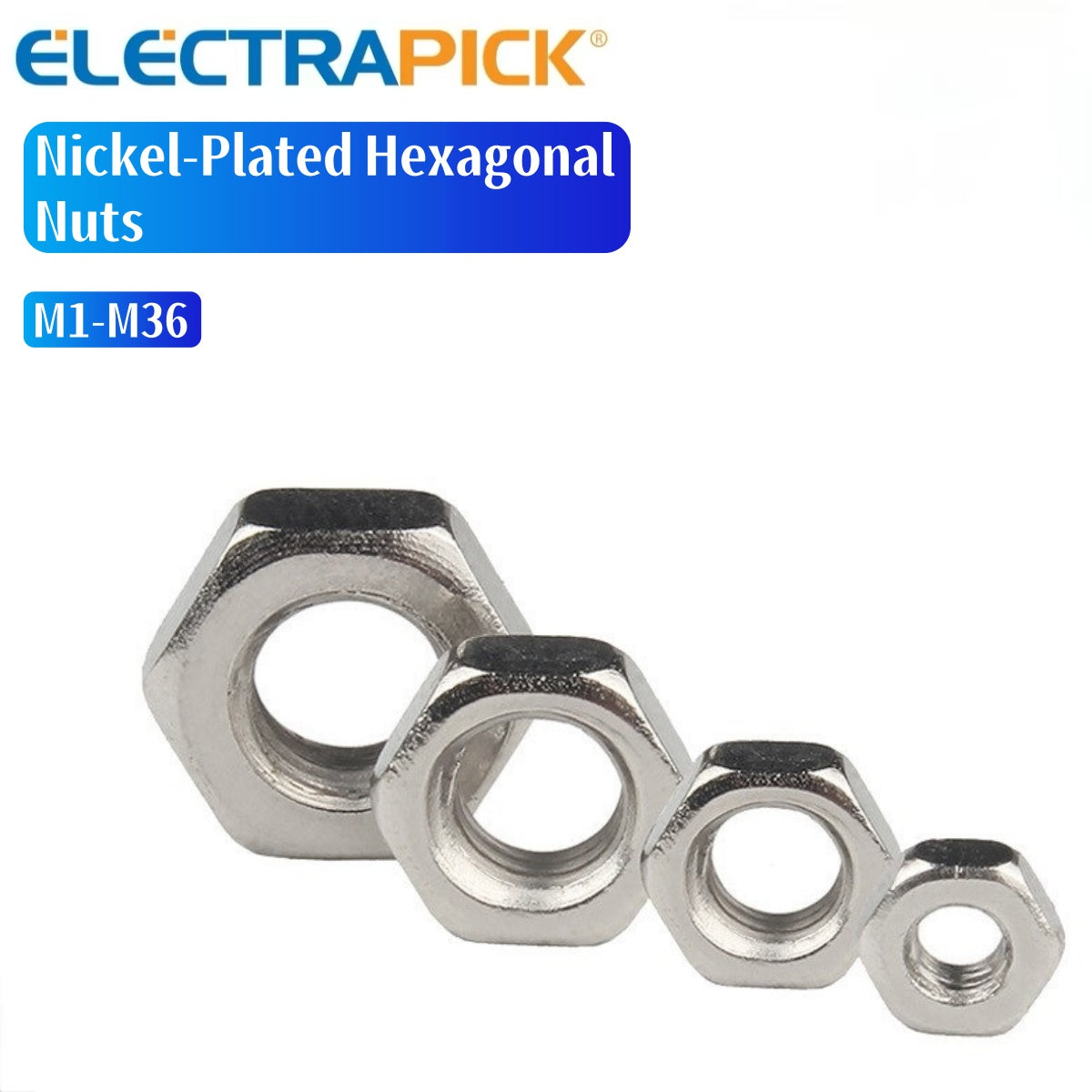

ELECTRAPICK Nickel-Plated Hexagonal Nuts
ELECTRAPICK Nickel-Plated Hexagonal Nuts
常规价格
$0.10 USD
常规价格
促销价
$0.10 USD
单价
/
单价
Dimensions chart
Specification sheet
Nominal diameter d | Thread pitch p | m | s | ||
max | min | max | min | ||
M1 | 0.25 | 0.65 | 0.55 | 2.5 | 2.4 |
M1.2 | 0.25 | 0.85 | 0.75 | 2.8 | 2.7 |
M1.4 | 0.3 | 1.05 | 0.95 | 3.1 | 3.0 |
M1.6 | 0.35 | 1.2 | 1.1 | 3.3 | 3.2 |
M2 | 0.4 | 1.7 | 1.6 | 4 | 3.8 |
M2.5 | 0.45 | 2 | 1.9 | 5 | 4.8 |
M2.6 | 0.45 | 2.25 | 2.15 | 5 | 4.8 |
M3 | 0.5 | 2.4 | 2.55 | 5.5 | 5.32 |
M4 | 0.7 | 3.2 | 2.9 | 7 | 6.78 |
M5 | 0.8 | 4 | 3.7 | 8 | 7.78 |
M6 | 1 | 5.1 | 5.0 | 10 | 9.78 |
M8 | 1/1.25 | 6.6 | 6.5 | 13 | 12.73 |
M10 | 1/1.25/1.5 | 8.2 | 8.1 | 16.1 | 15.9 |
M12 | 1.25/1.5/1.75 | 10.6 | 10.5 | 18.1 | 17.9 |
M14 | 1.5/2 | 12.3 | 12.2 | 20.8 | 20.7 |
M16 | 1.5/2 | 14.4 | 14.2 | 24 | 23.67 |
M18 | 1.5/2/2.5 | 15.5 | 15.3 | 27 | 26.16 |
M20 | 1.5/2/2.5 | 17.1 | 16.9 | 30 | 29.16 |
M22 | 1.5/2/2.5 | 18.3 | 18.1 | 33.3 | 33.1 |
M24 | 2/3 | 20.8 | 20.6 | 36 | 35 |
M27 | 2/3 | 23.5 | 23.1 | 41 | 40 |
M30 | 2/3.5 | 24.9 | 24.5 | 46 | 45 |
M36 | 4 | 29 | 27.4 | 55 | 53.8 |
