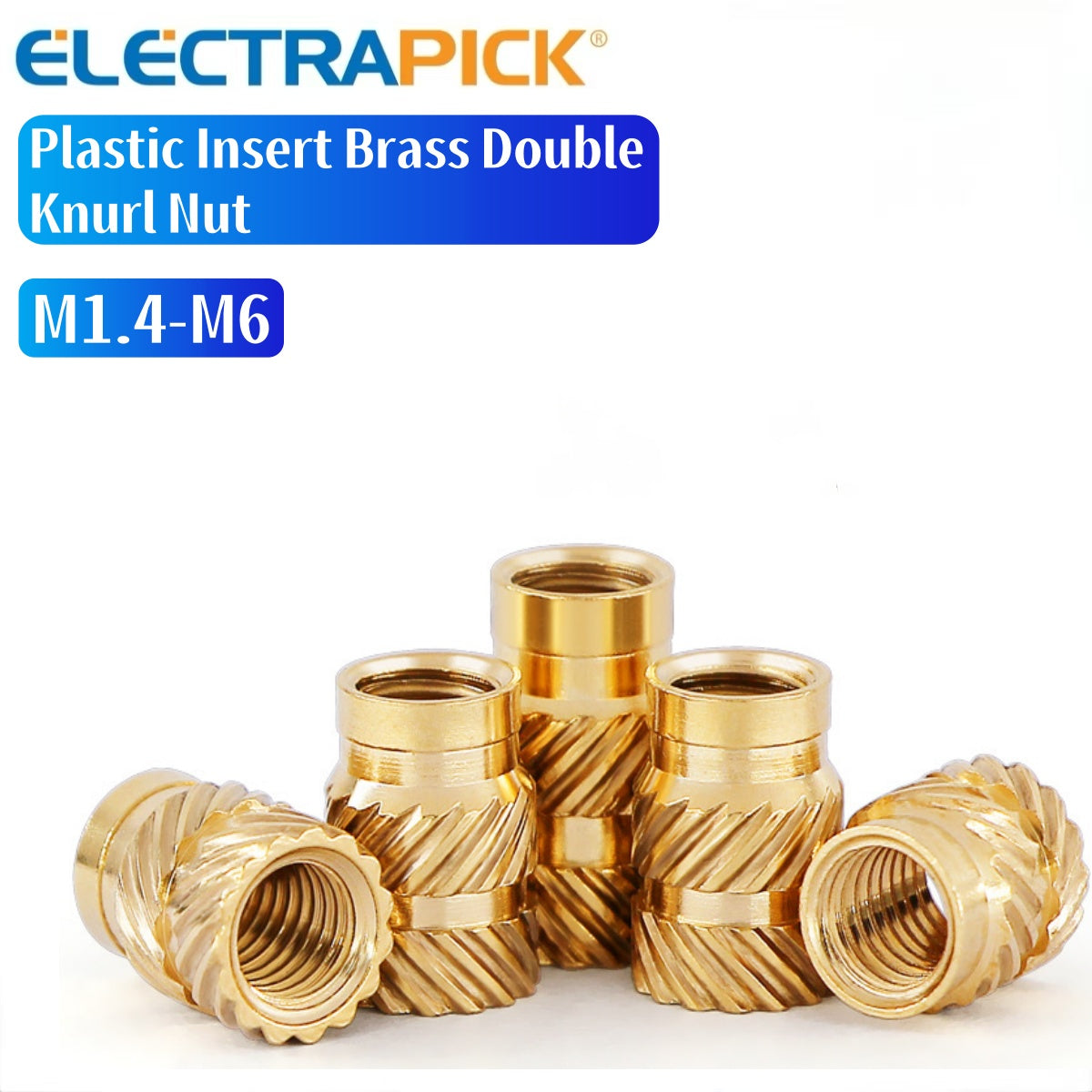

ELECTRAPICK Plastic Insert Brass Double Knurl Nut
ELECTRAPICK Plastic Insert Brass Double Knurl Nut
常规价格
$1.99 USD
常规价格
促销价
$1.99 USD
单价
单价
无法加载取货服务可用情况
Dimensions chart
Specification sheet
| Specification | Inner Diameter (mm) | Height (mm) | Knurled Outer Diameter (mm) | Middle Outer Diameter (mm) | Head Outer Diameter (mm) | |
| M1.4 | M1.4*L*2.3 | 1.4 | 1.5-3 | 2.3 | 2.25 | 1.9 |
| M2 | M2*L*3 | 2 | 3--8 | 3 | 2.81 | 2.68 |
| M2*L*3.5 | 2 | 3--8 | 3.5 | 3.18 | 3.03 | |
| M2*L*3.2 | 2 | 3--8 | 3.2 | 2.92 | 2.81 | |
| M2.5*L*4 | 2.5 | 3--8 | 4 | 3.48 | 3.44 | |
| M2.5*L*3.5 | 2.5 | 3--8 | 3.5 | 3.07 | 3.04 | |
| M3 | M3*L*4.2 | 3 | 3--10 | 4.2 | 3.77 | 3.74 |
| M3*L*4.5 | 3 | 3--10 | 4.5 | 3.96 | 3.9 | |
| M3*L*5 | 3 | 4--10 | 5 | 4.12 | 4.17 | |
| M3*L*4.6 | 3 | 4--10 | 4.6 | 3.78 | 3.98 | |
| M4 | M4*L*6 | 4 | 4--10 | 6 | 5.16 | 5.33 |
| M4*L*7 | 4 | 4--8 | 7 | 5.63 | 5.52 | |
| M4*L*6.3 | 4 | 4--8 | 6.3 | 5.45 | 5.46 | |
| M4*L*6.5 | 4 | 4--8 | 6.5 | 5.6 | 5.46 | |
| M5 | M5*L*7 | 5 | 4--10 | 7 | 5.93 | 6.12 |
| M5*L*8 | 5 | 4--9 | 8 | 6.99 | 6.97 | |
| M5*L*7.5 | 5 | 4--9 | 7.5 | 6.44 | 6.42 | |
| M6 | M6*L*8 | 6 | 6--12 | 8 | 7.07 | 7.09 |
Basic Information
