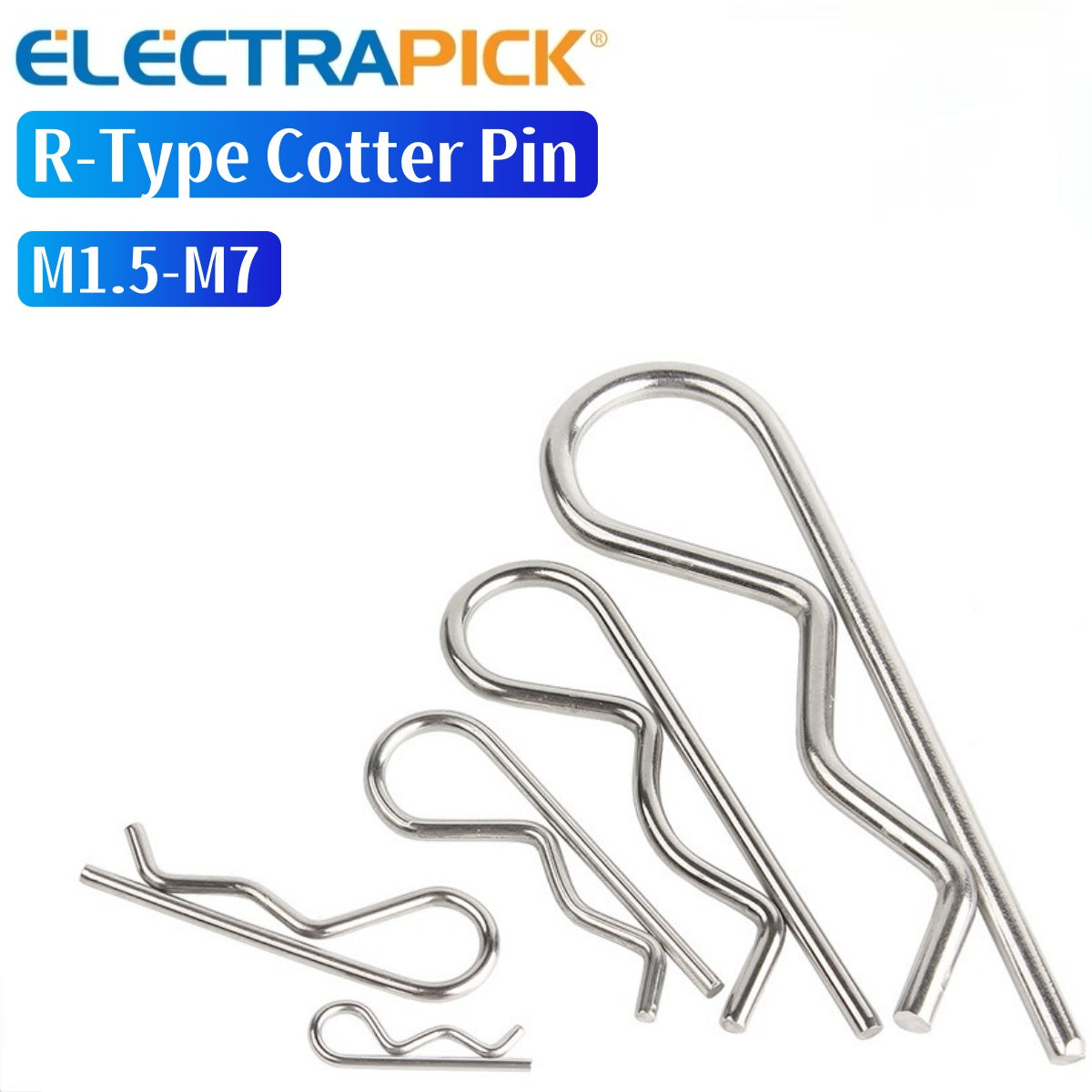

ELECTRAPICK R-Type Cotter Pin
ELECTRAPICK R-Type Cotter Pin
常规价格
$1.99 USD
常规价格
促销价
$1.99 USD
单价
单价
无法加载取货服务可用情况
Dimensions chart
Specification sheet
| Nominal Diameter (d) | 1.5 | 2 | 3 | 4 | 5 | 6 | 7 | |
| d2 | Minimum | 7 | 9 | 10 | 16 | 20 | 28 | - |
| Maximum | 12 | 14 | 16 | 20 | 28 | 40 | - | |
| d3 | Minimum | 2 | 2.5 | 3.5 | 4.5 | 5.5 | 6.5 | - |
| Maximum | 2.5 | 3.5 | 4.5 | 5.5 | 6.5 | 7.5 | - | |
| h | Minimum | 9 | 13 | 23 | 27 | 32 | 42 | - |
| Maximum | 13 | 23 | 27 | 32 | 42 | - | - | |
| L1 | Minimum | 45 | 57 | 72 | 74 | 102 | 126 | - |
| Maximum | 57 | 72 | 74 | 102 | 126 | - | - | |
| L2 | Minimum | 25 | 32 | 42 | 44 | 57 | 73 | - |
| Maximum | 32 | 42 | 44 | 57 | 73 | - | - | |
| L3 | Minimum | 20 | 25 | 30 | 30 | 45 | 53 | - |
| Maximum | 25 | 30 | 30 | 45 | 53 | - | - | |
| L4 | Minimum | 25 | 34 | 44 | 48 | 61 | 77 | - |
| Maximum | 34 | 44 | 48 | 61 | 77 | - | - | |
