ELECTRAPICK

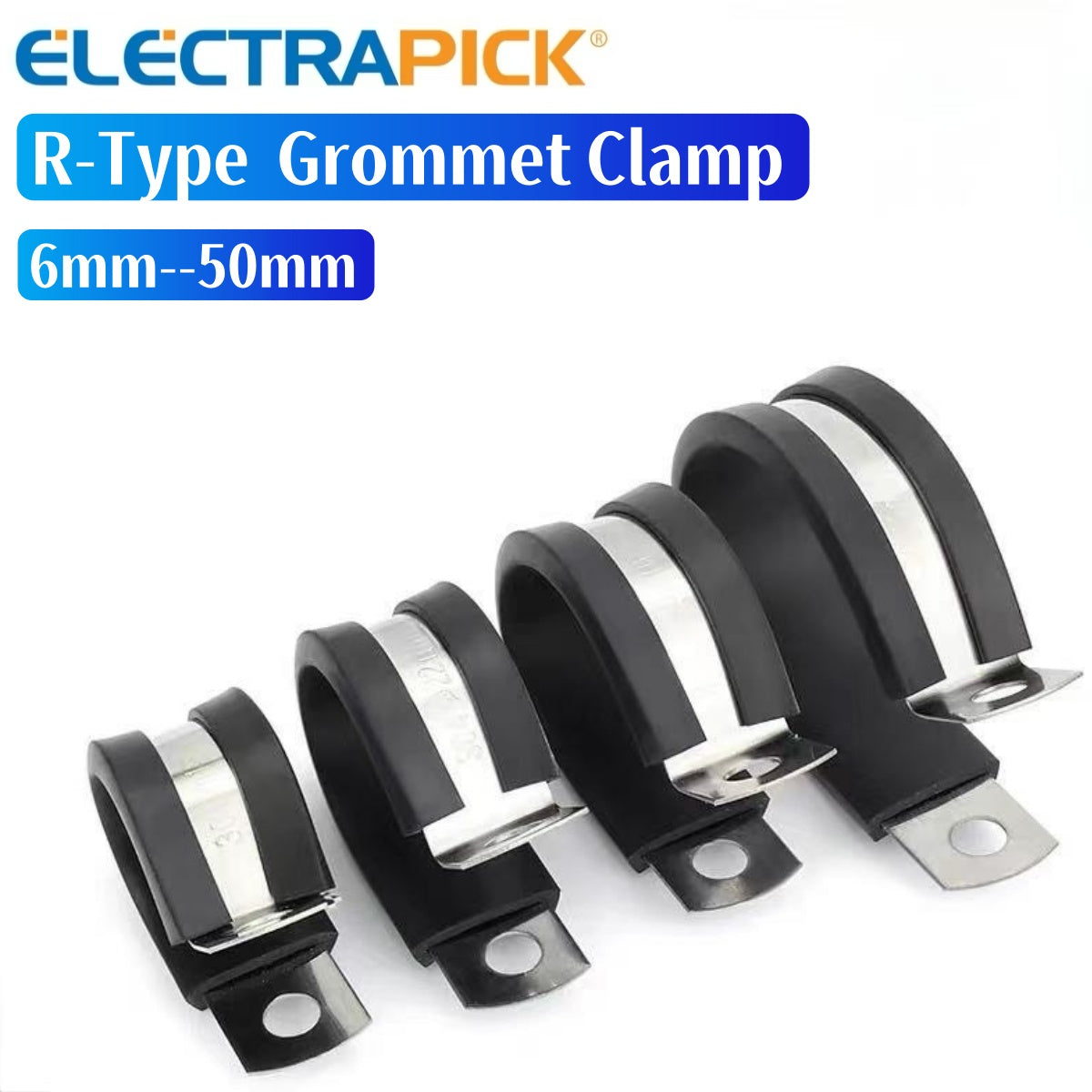

ELECTRAPICK R-Type Grommet Clamp
ELECTRAPICK R-Type Grommet Clamp
常规价格
$1.99 USD
常规价格
促销价
$1.99 USD
单价
单价
无法加载取货服务可用情况
Dimensions chart
Specification sheet
| Product Specification (mm) | Steel Belt Width (mm) | Adhesive Total Thickness (mm) | Steel Thickness (mm) | Hole Diameter (mm) | Weight per Piece (kg) |
| 6 | 15 | 4 | 0.6 | 6.4 | 0.008 |
| 8 | 15 | 4 | 0.6 | 6.4 | 0.009 |
| 10 | 15 | 4 | 0.6 | 6.4 | 0.01 |
| 12 | 15 | 4 | 0.6 | 6.4 | 0.011 |
| 14 | 15 | 4 | 0.6 | 6.4 | 0.012 |
| 16 | 15 | 4 | 0.6 | 6.4 | 0.013 |
| 18 | 15 | 4 | 0.6 | 6.4 | 0.014 |
| 20 | 15 | 4 | 0.6 | 6.4 | 0.015 |
| 22 | 15 | 4 | 0.6 | 6.4 | 0.016 |
| 24 | 15 | 4 | 0.6 | 6.4 | 0.017 |
| 26 | 15 | 4 | 0.6 | 6.4 | 0.019 |
| 28 | 15 | 4 | 0.6 | 6.4 | 0.02 |
| 30 | 15 | 4 | 0.6 | 6.4 | 0.021 |
| 32 | 15 | 4 | 0.6 | 6.4 | 0.022 |
| 34 | 15 | 4 | 0.6 | 6.4 | 0.023 |
| 36 | 15 | 4 | 0.6 | 6.4 | 0.024 |
| 40 | 15 | 4 | 0.6 | 6.4 | 0.025 |
| 42 | 15 | 4 | 0.6 | 6.4 | 0.026 |
| 44 | 15 | 4 | 0.6 | 6.4 | 0.027 |
| 46 | 15 | 4 | 0.6 | 6.4 | 0.028 |
| 48 | 15 | 4 | 0.6 | 6.4 | 0.03 |
| 50 | 15 | 4 | 0.6 | 6.4 | 0.03 |
Basic Information
