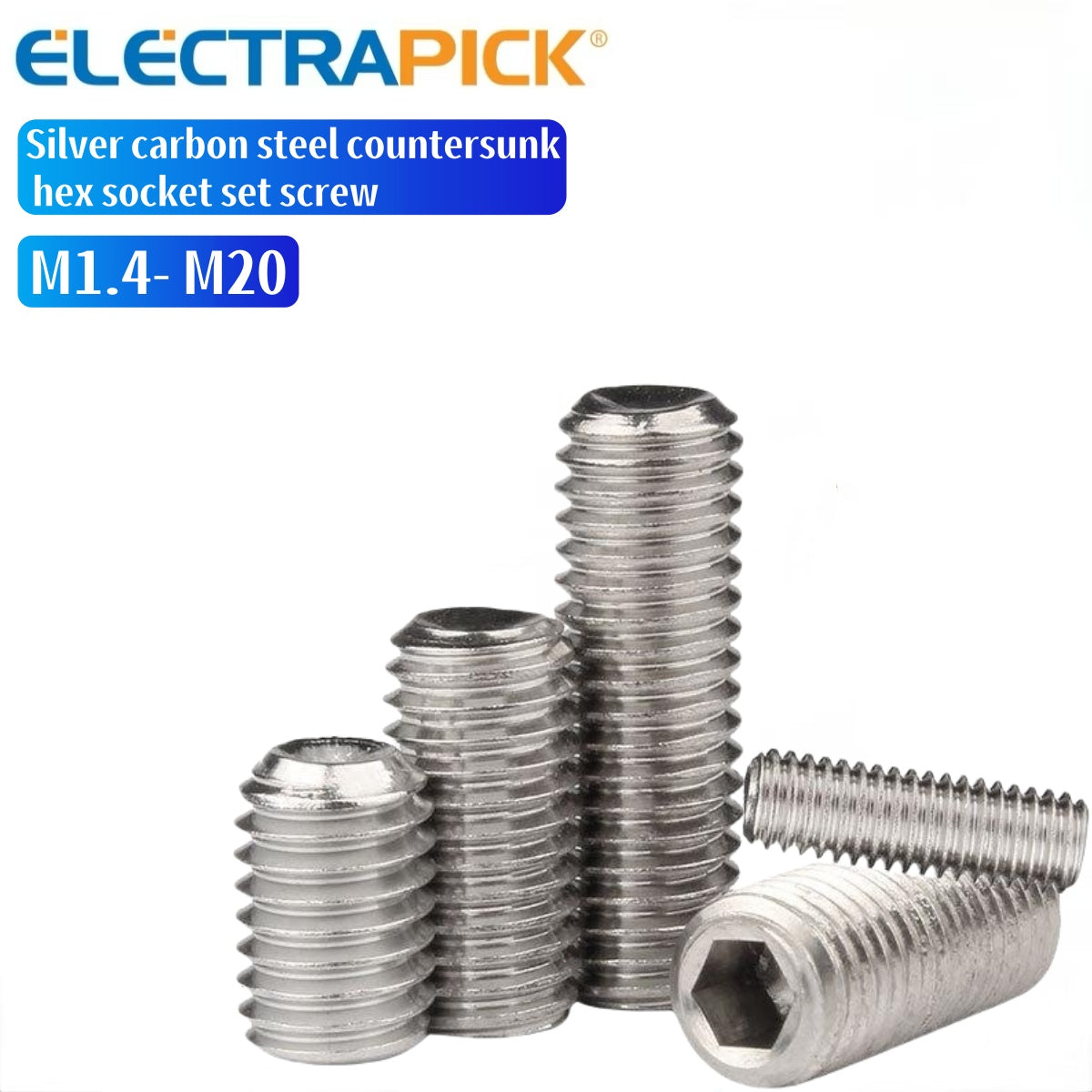

ELECTRAPICK Silver carbon steel countersunk hex socket set screw
ELECTRAPICK Silver carbon steel countersunk hex socket set screw
常规价格
$1.00 USD
常规价格
促销价
$1.00 USD
单价
/
单价
Dimensions chart
Specification sheet
Thread specification d | Pitch P | S | t | ||
公称 | maX | min | |||
M1.4 | 0.3 | 0.7 | 0.724 | 0.711 | 0.6 |
M1.6 | 0.35 | 0.7 | 0.724 | 0.711 | 0.7 |
M1.8 | 0.35 | 0.7 | 0.724 | 0.711 | 0.8 |
M2 | 0.4 | 0.9 | 0.902 | 0.889 | 0.8 |
M2.5 | 0.45 | 1.3 | 1.295 | 1.27 | 1.2 |
M3 | 0.5 | 1.5 | 1.545 | 1.52 | 1.2 |
M4 | 0.7 | 2 | 2.045 | 2.02 | 1.5 |
M5 | 0.8 | 2.5 | 2.56 | 2.52 | |
M6 | 1 | 3 | 3.08 | 3.02 | 2 |
M8 | 1.25 | 4 | 4.095 | 4.02 | 3 |
M10 | 1.5 | 5 | 5.095 | 5.02 | 4 |
M12 | 1.75 | 6 | 6.095 | 6.02 | 4.8 |
M14 | 2 | 6 | 6.095 | 6.02 | 5.6 |
M16 | 2 | 8 | 8.115 | 8.025 | 6.4 |
M18 | 2.5 | 10 | 10.12 | 10.03 | 7.2 |
M20 | 2.5 | 10 | 10.12 | 10.03 | 8 |
