ELECTRAPICK

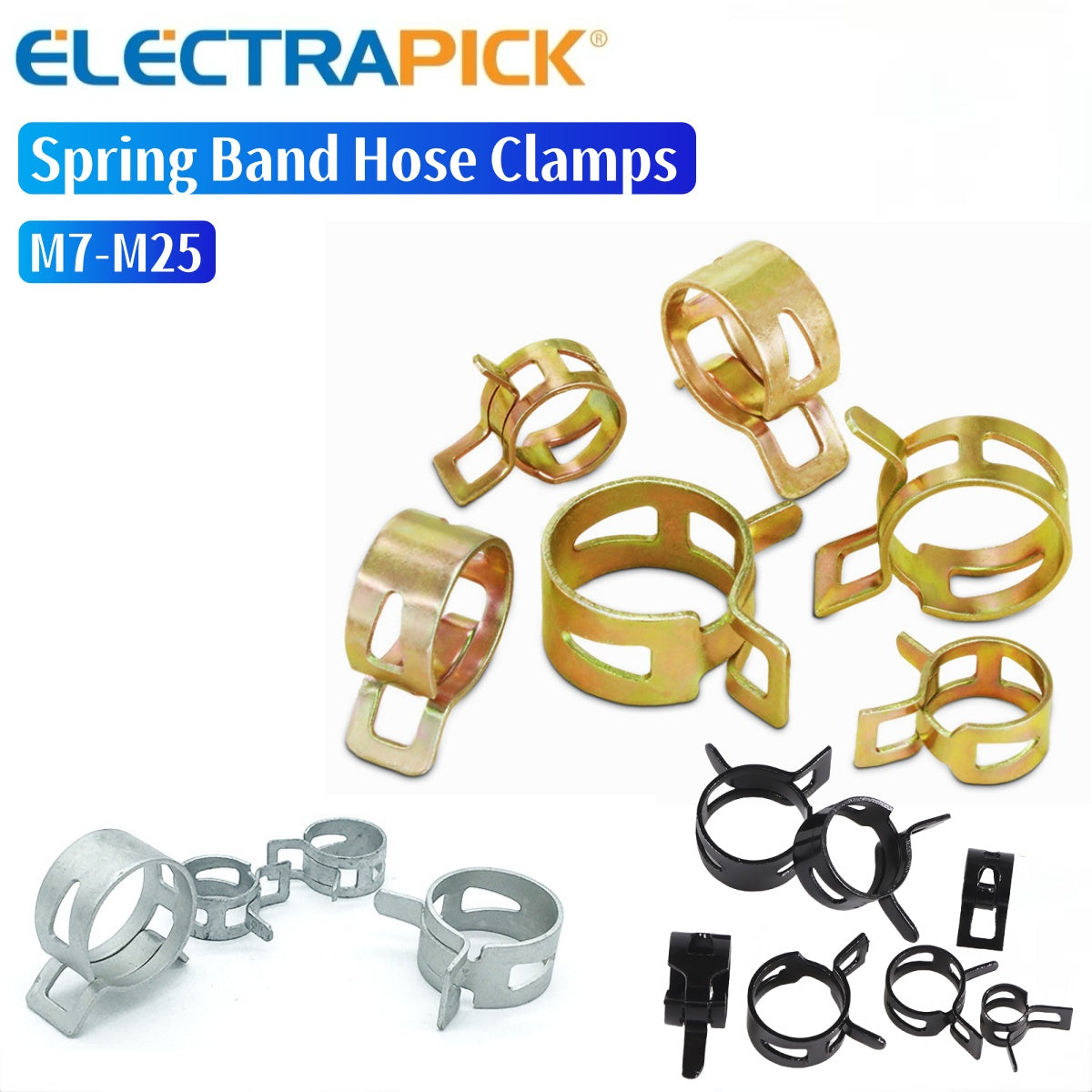

ELECTRAPICK Spring Band Hose Clamps

ELECTRAPICK Spring Band Hose Clamps

$1.99 USD
$1.99 USD
促销 售罄
Surface treatment
Nominal Diameter

Dimensions chart


Specification sheet

Nominal Diameter  d (max) d (min) Nominal h h (max) h (min) Nominal t t (max) t (min)
M7 7.2 6.8 6 6.25 5.75 0.6 0.63 0.57
M8 8.2 7.8 6 6.25 5.75 0.6 0.63 0.57
M8.5 8.7 8.3 8 8.25 7.75 0.6 0.63 0.57
M9 9.2 8.8 8 8.25 7.75 0.6 0.63 0.57
M9.5 9.7 9.3 8 8.25 7.75 0.8 0.83 0.77
M10 10.2 9.8 8 8.25 7.75 0.8 0.83 0.77
M10.5 10.8 10.2 8 8.25 7.75 0.8 0.83 0.77
M11 11.3 10.7 8 8.25 7.75 0.8 0.83 0.77
M11.5 11.8 11.2 8 8.25 7.75 0.8 0.83 0.77
M12 12.3 11.7 8 8.25 7.75 0.8 0.83 0.77
M12.5 12.8 12.2 8 8.25 7.75 0.8 0.83 0.77
M13 13.3 12.7 8 8.25 7.75 0.8 0.83 0.77
M13.5 13.8 13.2 8 8.25 7.75 0.8 0.83 0.77
M14 14.3 13.7 10 10.25 9.75 0.8 0.83 0.77
M14.5 14.8 14.2 10 10.25 9.75 0.8 0.83 0.77
M15 15.3 14.7 10 10.25 9.75 1 1.04 0.96
Nominal Diameter  d (max) d (min) Nominal h h (max) h (min) Nominal t t (max) t (min)
M15.5 15.8 15.2 10 10.25 9.75 1 1.04 0.96
M16 16.3 15.7 12 12.25 11.75 1 1.04 0.96
M16.5 16.8 16.2 12 12.25 11.75 1 1.04 0.96
M17 17.3 16.7 12 12.25 11.75 1 1.04 0.96
M17.5 17.8 17.2 12 12.25 11.75 1 1.04 0.96
M18 18.3 17.7 12 12.25 11.75 1 1.04 0.96
M18.5 18.8 18.2 12 12.25 11.75 1 1.04 0.96
M19 19.3 18.7 12 12.25 11.75 1 1.04 0.96
M19.5 19.8 19.2 12 12.25 11.75 1 1.04 0.96
M20 20.3 19.7 12 12.25 11.75 1 1.04 0.96
M20.5 20.8 20.2 12 12.25 11.75 1 1.04 0.96
M21 21.3 20.7 12 12.25 11.75 1 1.04 0.96
M23 23.3 22.7 12 12.25 11.75 1.2 1.25 1.15
M24 24.3 23.7 12 12.25 11.75 1.2 1.25 1.15
M25 25.3 24.7 12 12.25 11.75 1.2 1.25 1.15


Basic Information
