ELECTRAPICK

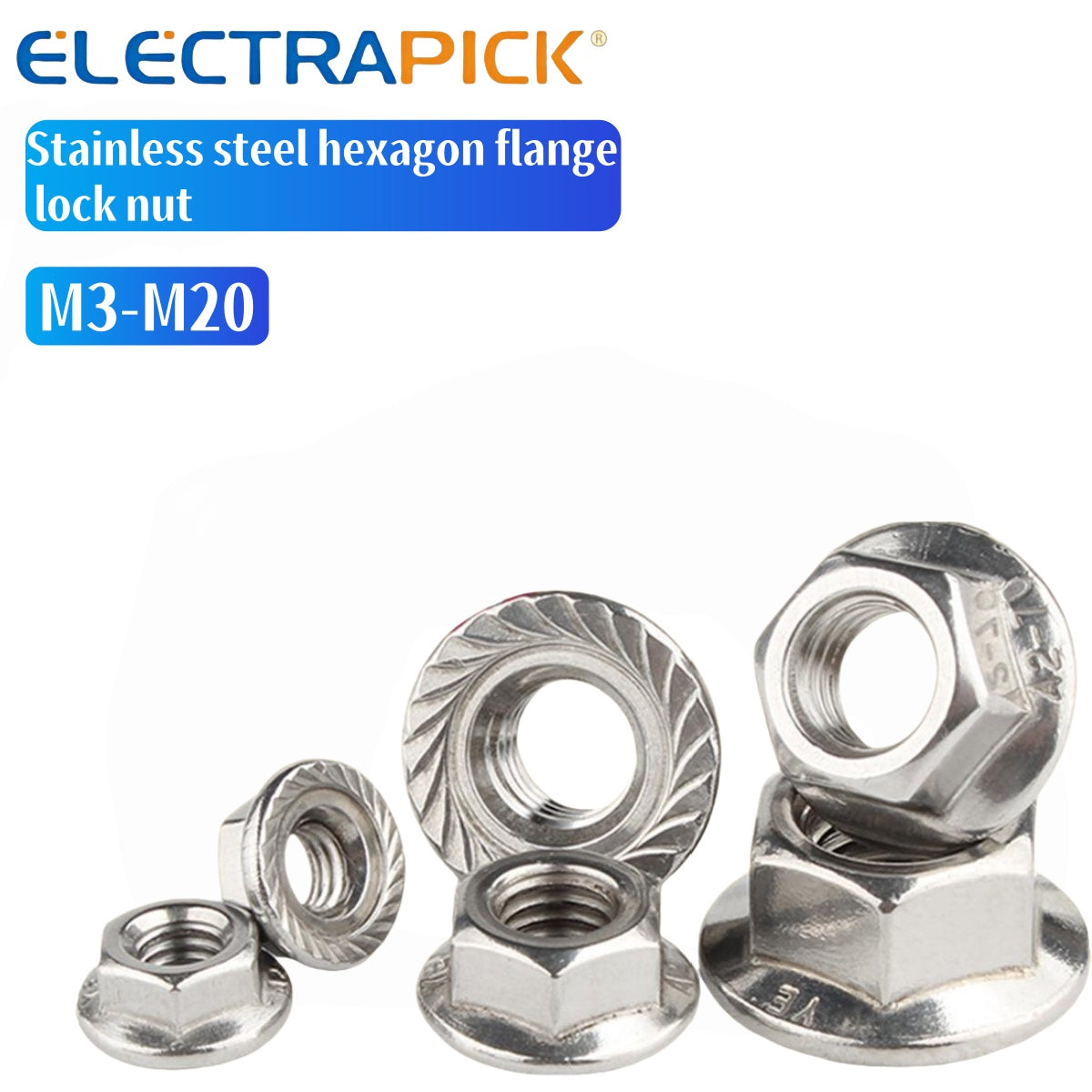

ELECTRAPICK Stainless steel hexagon flange lock nut

ELECTRAPICK Stainless steel hexagon flange lock nut

常规价格 $0.08 USD
常规价格 促销价 $0.08 USD
促销 售罄
Thread Nominal (M) and Flange Outside Diameter

Dimensions chart


Specification sheet

Thread specification d M5 M6 MB M10 M12 (M14) M16 M20
P Thread pitch 0.8 1 1.25 1.5 1.75 2 2 2.5
k Maximum 5 8 10 12 14 16 20
Minimum 4.7 5.7 7.64 9.64 11.57 13.3 15.3 18.7
Maximum 10 13 15 18 21 24 30
Minimum 7.78 9.78 12.73 14.73 17.73 20.67 23.67 29.16
d. Maximum 11.8 14.2 17.9 21.8 26 29.9 34.5 42.8


Basic Information
