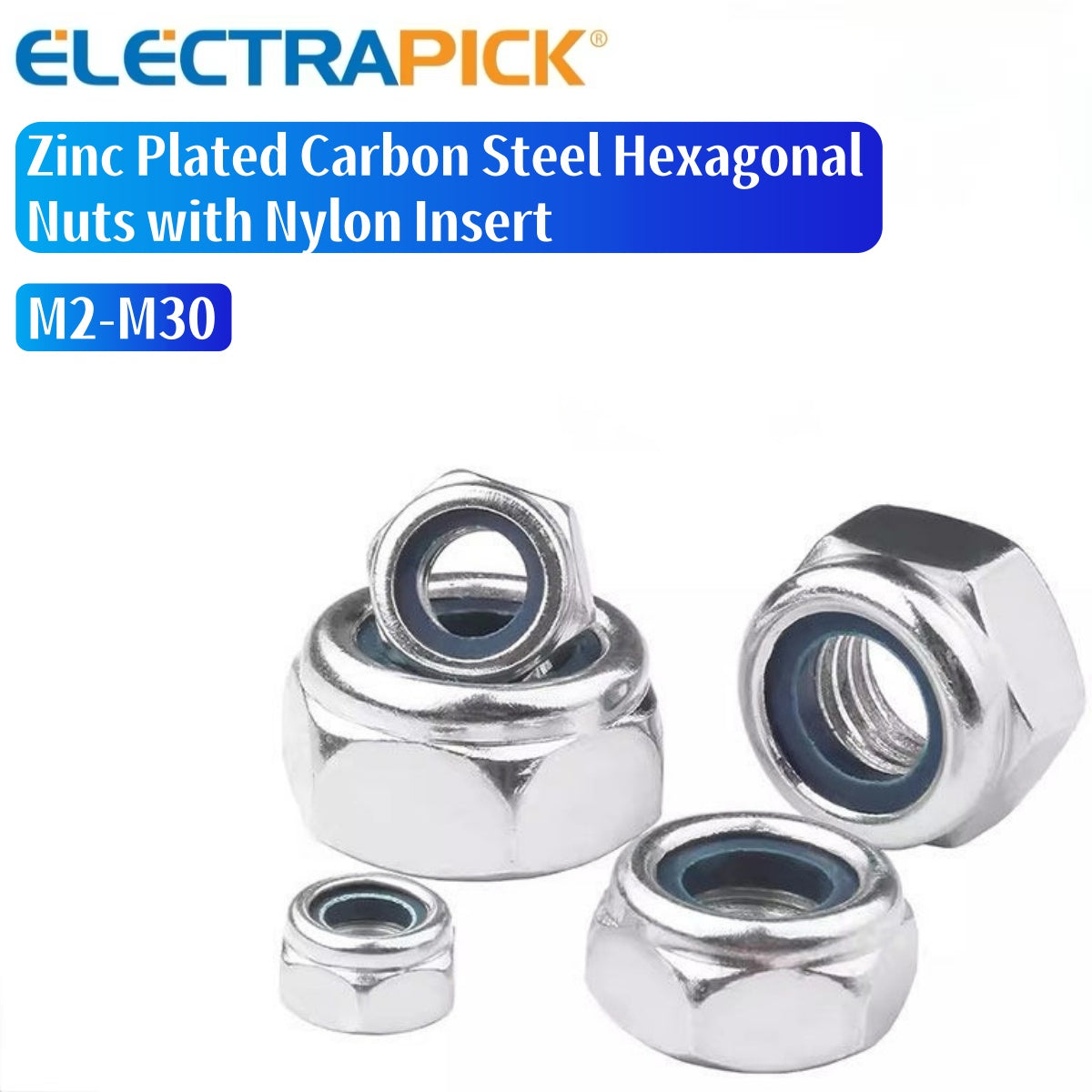

ELECTRAPICK Zinc Plated Carbon Steel Hexagonal Nuts with Nylon Insert

ELECTRAPICK Zinc Plated Carbon Steel Hexagonal Nuts with Nylon Insert

$1.99 USD
$1.99 USD
促销 售罄
TYPE

Dimensions chart


Specification sheet

Nominal diameter D Thread pitch P h m S
max min min max min
M2 0.4 3 2.86 2.0 4 3.82
M2.5 0.45 3.8 3.6 2.3 5 4.78
M3 0.5 4 3.7 2.4 5.5 5.32
M4 0.7 5 4.7 2.9 7 6.78
M5 0.8 5 4.7 3.2 8 7.68
M6 1 6 5.7 4 10 9.78
M7 1 7.5 7.14 4.7 11 10.73
M8 1/1.25 8 7.64 5.5 13 12.73
M10 1/1.25/1.5 10 9.64 6.5 17 16.73
M12 1.25/1.5/1.7 12 11.57 8 19 18.67
M14 1.5/2 14 13.3 9.5 22 21.67
M16 1.5/2 16 15.3 10.5 24 23.67
M18 1.5/2/2.5 18.5 17.66 13 27 26.16
M20 1.5/2/2.5 20 18.7 14 30 29.16
M22 1.5/2/2.5 22 20.7 15 32 31
M24 2/3 24 22.7 15 36 35
M27 2/3 27 25.7 14 41 40
M30 2/3.5 30 28.7 19 46 45


Basic Information
